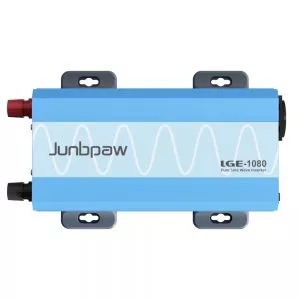

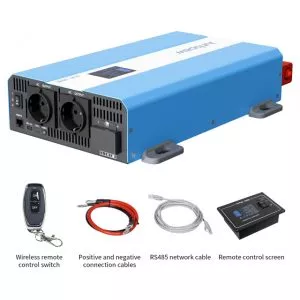

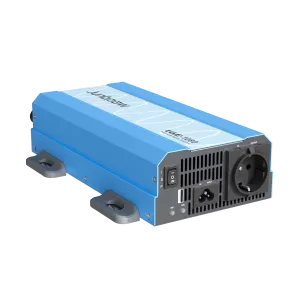

Junbpaw battery charger with UPS switch-Portable Mobile Power System

LGC series has three functions: inverter, battery charger, relay (UPS switch).It is specially designed to power entertainment systems and home appliances in boats, RVs, and trucks. The voltages that can be selected are 12V/24V/36V/48V, 1000W-4000W.Junbpaw battery charger is one of the smallest, lightest and most affordable inverter/charger on the market.Both AC input and output are equipped with quick-connect AC terminals for easy installation.

Features:1.Three-stage scientific, safe and efficient charger.

2.Seven protection functions: high and low voltage protection, over temperature protection, low temperature protection, short circuit cutoff, overload protection, ground fault protection.

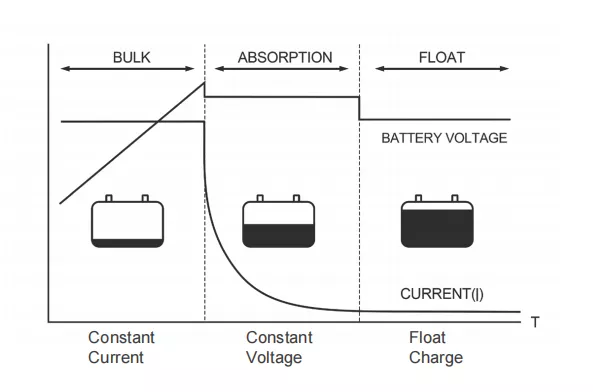

Charging working mode:Automatic three-level battery charging

1. The first stage of constant current – fast charging of high current batteries.
2. The second stage of constant voltage – the constant voltage battery is moderately charged so
that the battery can absorb power well and maximize the battery life.
3. The third stage of float charging – when the battery is charged to about 99%. The charger
automatically switches to “float charging mode” to keep the battery in good condition.

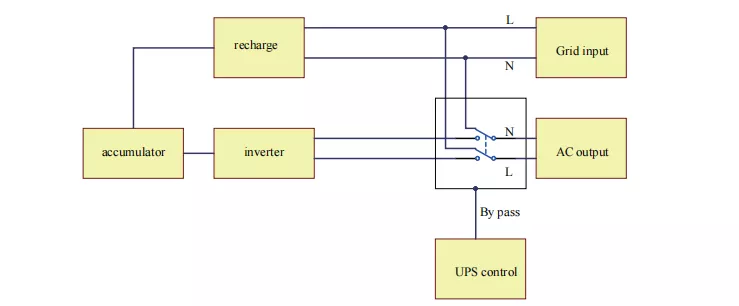

Mains power Priority.When the mains power is connected, the mains power charging will be used by default,The inverter switches on and enters the UPS switch mode.

In the event of a power outage or emergency, the shore power is cut off and will switch to battery power in a very short time.During this period, household appliances are still in operation and will not be affected.Our inverter is very suitable for small backup/mobile power systems and can be used in RVs, ships, and trucks.
