1000W Inverter Charger

1.3-stage charging plus 1-stage maintenance.

2. Adaptive charging mode, compatible with different batteries.

3. Configurable wireless remote control and screen.

4. Protection functions: overcharge, short circuit, overload, over temperature, over-voltage and under-voltage.

5. UPS switching time is less than 20ms, free switch between Battery and Mains power.

6. Compact size and weight, easy to install.

7. Built-in load sense to minimize battery drain.

8. Silent output.

Contact Now

+ Inquire

Downloads

Description

Specification

FAQ

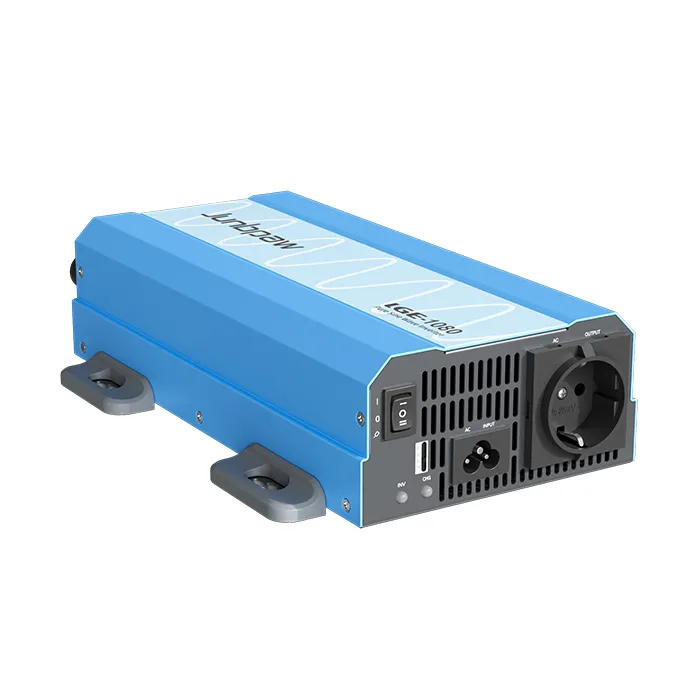

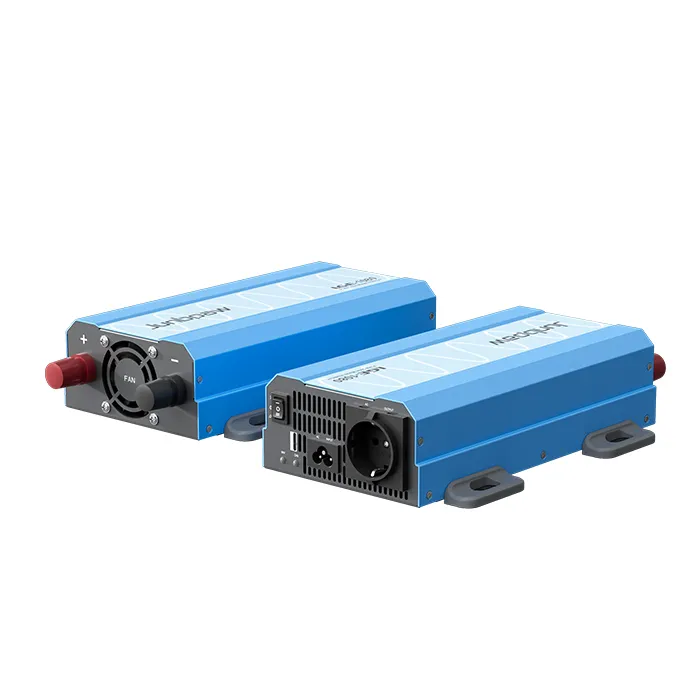

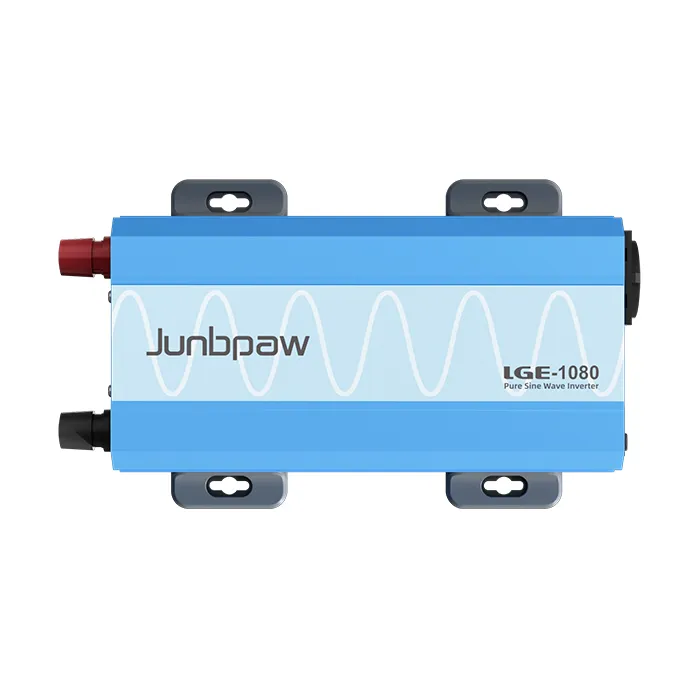

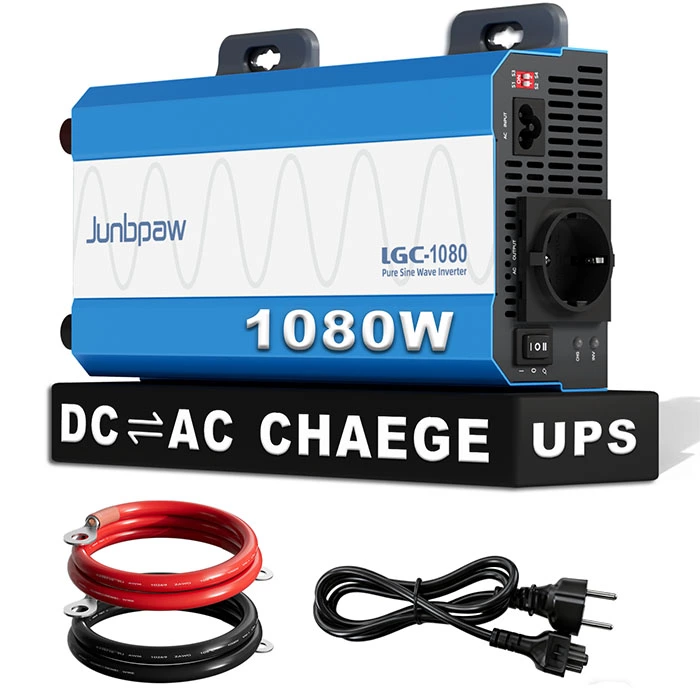

1000W Pure Sine Wave Inverter Charger

Whether it is for outdoor activity or mobile office work,power is very important.Our 1000w inverter charger allows you to power your household appliances.
In addition,it will charge your battery at any time.

When the mains power is suddenly cut off, it can still power your electrical appliances.

With compact size and lightweight,it is easier to install and carry anywhere.

Output Voltage: 220/230/240V

Rated power 1000w

MODELNO.		1080W
OUTPUT	Rated Power(Typ.)	1080W
	Maximum Output Power (1 Min)	>1080W~1240W(100%~115%)
	Surge Power(Max.3 Sec)	>1240W~1620W(115%~150%)
	Surge Power(Max.1 Sec)	>1620W~2160W(150%~200%)
	Surge Power(Max.0.2 Sec)	>2160W(>200%)
	AC Voltage	220/230/240VAC
	Frequency	50/60Hz±0.5%
	Waveform	Pure sine wave (THD<3%)
	AC Regulation(Typ.)	±5%
	LED Indicator	Input voltage level,output load level and faulty status
AC INPUT	AC INPUT	180VAC~240VAC 50/60 Hz
	LED Indicator	Red Light:In charging Green Light:Fully charged
	Charging Way	3 Stage(Constant Current,Constant Voltage,Float Charge)
	Suitable Battery	Gel,Lifepo4,Acid,AGM
	Dip switch for select battery type	Constant Voltage: S1=14V,S2=14.2V,S3=14.4V,S4=14.6V	Constant Voltage: S1=28V,S2=28.4V,S3=28.8V,S4=29.2V	Constant Voltage S1=56V,S2=56.8V,S3=57.6V,S4=58.4V
		Float Charge: S1=13.2V,S2=13.4V,S3=13.6V,S4=13.8V	FloatCharge: S1=26.4V,S2=26.8V,S3=27.2V,S4=27.6V	FloatCharge: S1=52.8V,S2=53.6V,S3=54.4V,S4=55.2V
	Max Charging Current	20A	10A	5A
By Pass Mode	ByPass Switching Time	≤15ms
	Maximum bypass output current	8A
INPUT	DC Voltage	12VDC	24VDC	48VDC
	Voltage Range	10.5~16.5VDC	21.0~33.0VDC	42.0~66.0VDC
	No Load Current	0.6A	0.4A	0.25A
	Efficiency (80%.)	91%	92%	93%
	Remote Standby Mode	≤0.8W	≤0.8W	≤0.8W
PROTECTION	Input Under -Voltage Protection	10.0±0.3VDC	20.0±0.5VDC	41.0±1.0VDC
	Input Under -Voltage Recovery	12.5±0.3VDC	25.0±0.5VDC	50.0±1.0VDC
	Input Over-Voltage Protection	16.5±1.0VDC	33.0±1.0VDC	63.0±1.0VDC
	Input Over -Voltage Recovery	15.0±0.5VDC	30.0±0.5VDC	58.0±1.0VDC
	Output Overload	1080W≥115%
		1 minute automatic shutdown output,automatic lock,restart to recover
	Output Short Circuit	Output short circuit protection 3s shutdown lock,restart to recover
	Over Temperature	85℃±5℃
	DC Input Reverse Polarity	By internal fuse open
SAFETY&EMC	Withstand Voltage	Bat I/P-AC O/P:3.0KVAC AC O/P -FG:1.5 KVAC
	Isolation Resistance	Bat VP-AC O/P,Bat I/P -FG,AC O/P-FG:100M ohms /500VDC/25℃/70%RH
	EMC Emission	Compliance to FCC classA ,E-Mark EACTPTC 020,EN55032 classA,721245/CEE,95154/CE
	EMC Immunity	Compliance to EAC TPTC 020,EN61000-4-2,3,4,5,6,8,11
ENVIRONMENT	Working Temp	-30℃~60℃
	Working Humidity	20~90%RH
	Storage Temp,Humidity	-30~+70℃1-22~+158F,10~95%RH non-condensing
OTHERS	Dimension	31218573mm
	Packing	≈2.8KG

Most Compact and Portable UPS Inverter

Charging your battery anytime and anywhere

Wall mounting save space

free switch between different power source

Applied for different Battery

Wireless screen

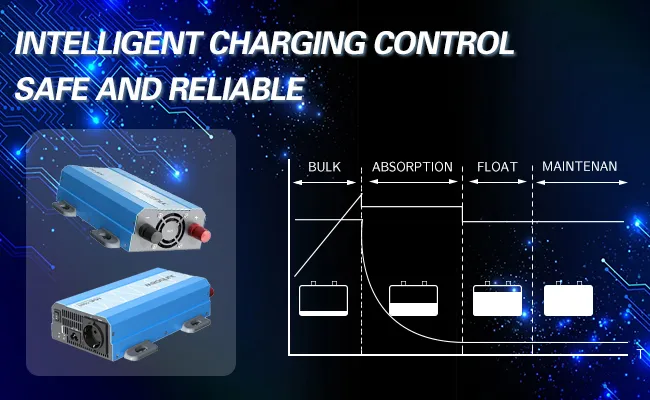

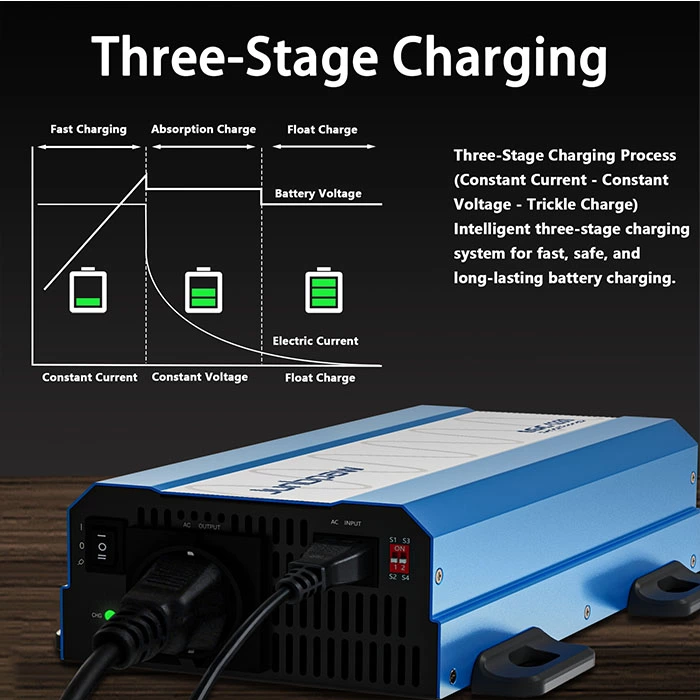

Bulk/Absorption/Float/Maintenance

Intelligent charging control,safe and reliable.

Compatible with different Battery

High efficiency and battery friendly.

Compact size and lightweight

Easy to install and carry.

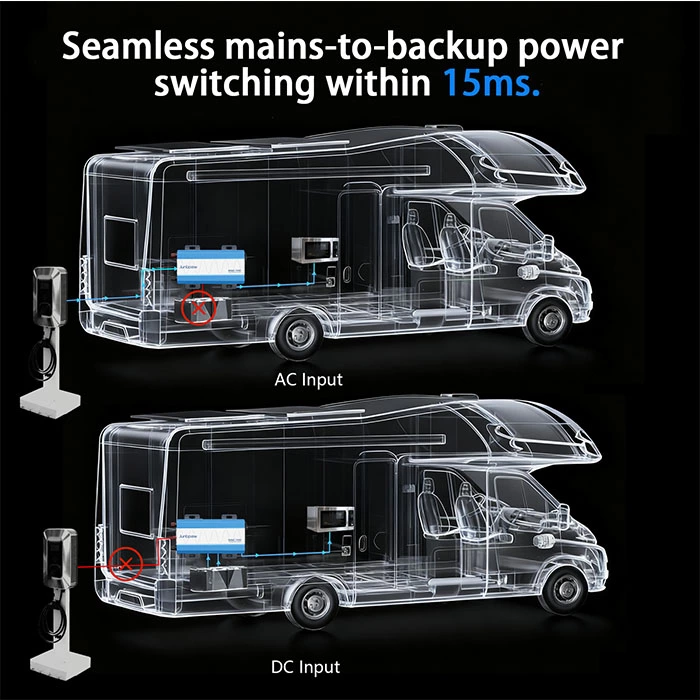

Continuous Power supply,free switch between battery and Mains power

UPS switch time within 20ms,protect the file of your computer.

1000w pure sine wave inverter with charger

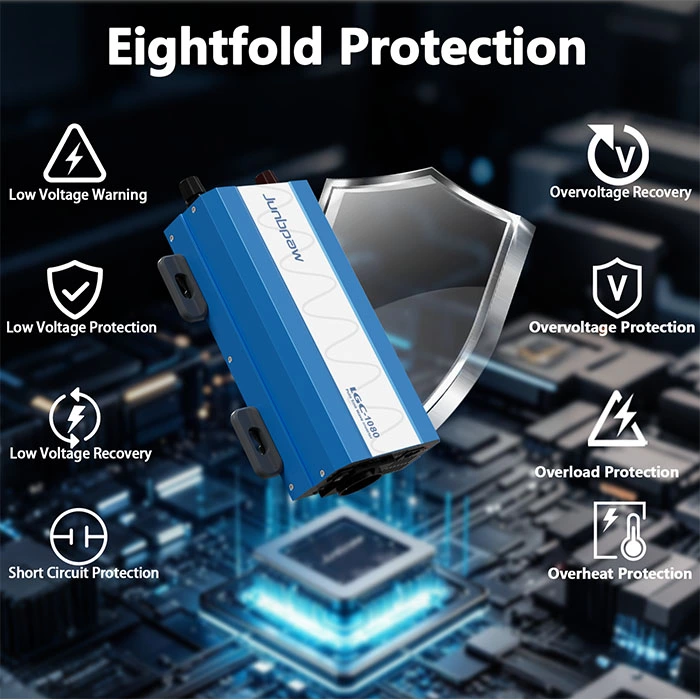

Protection:overcharge,short circuit,overload,over temperature

Protect the battery and extend the life.

Wireless control and lcd display real monitoring

Master your inverter and electrical appliances.

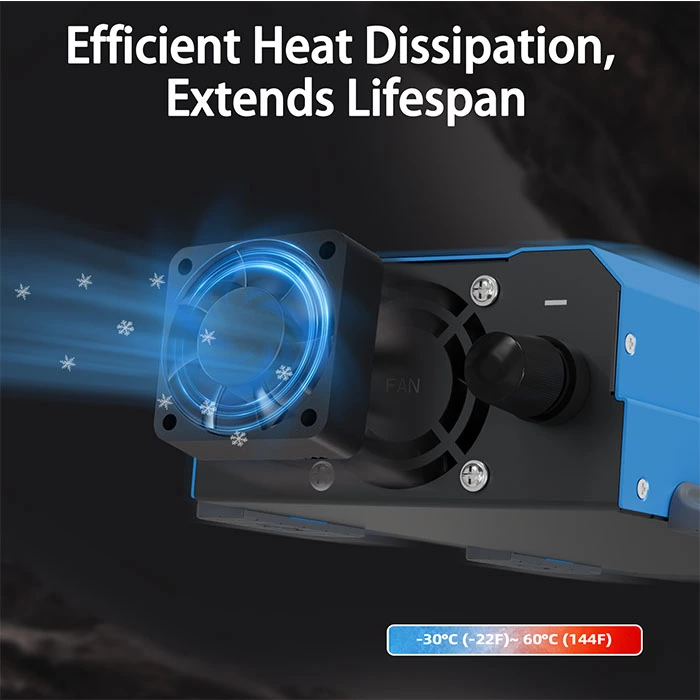

Silent output

Intelligent cooling,worry-free sleep.

Most portable backup power

It is widely used in RV,home backup power, mobile offices, small commercial office, and outdoor work.

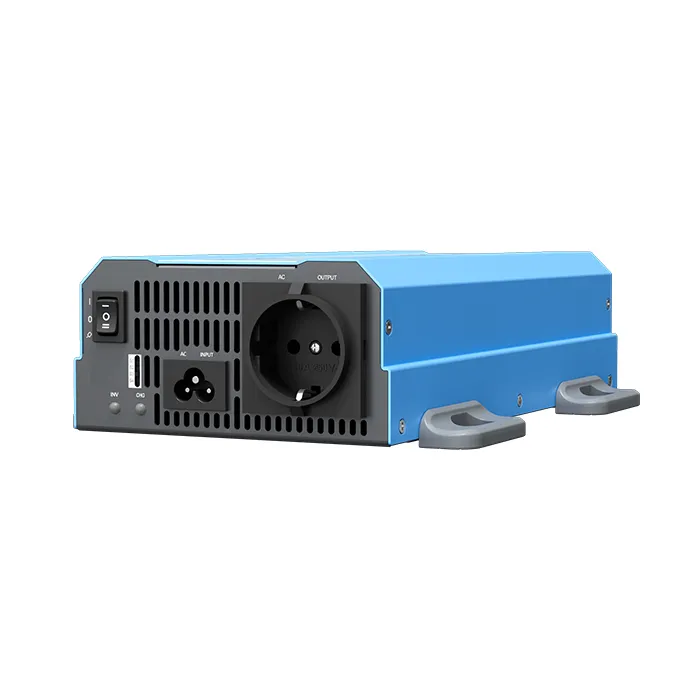

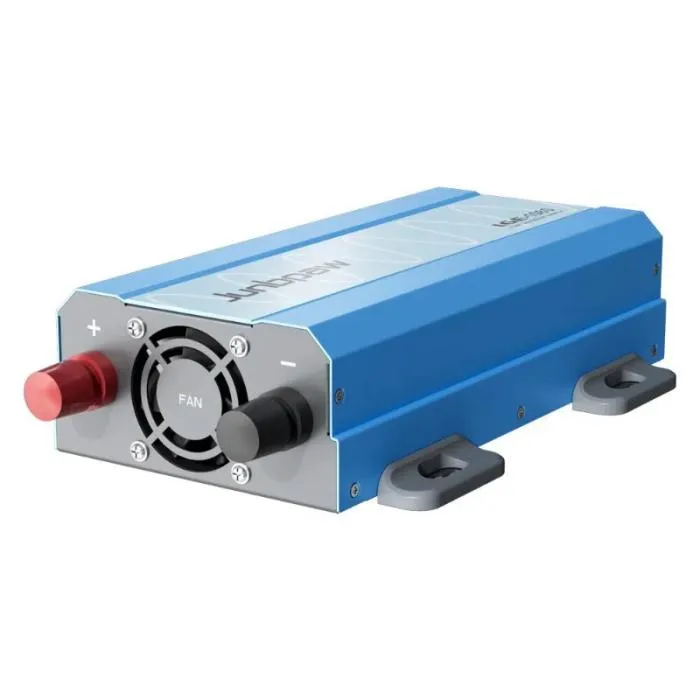

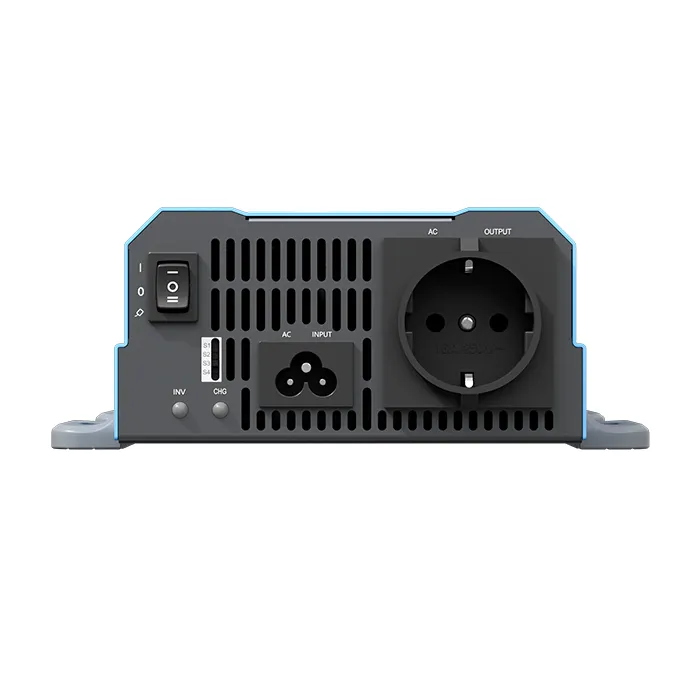

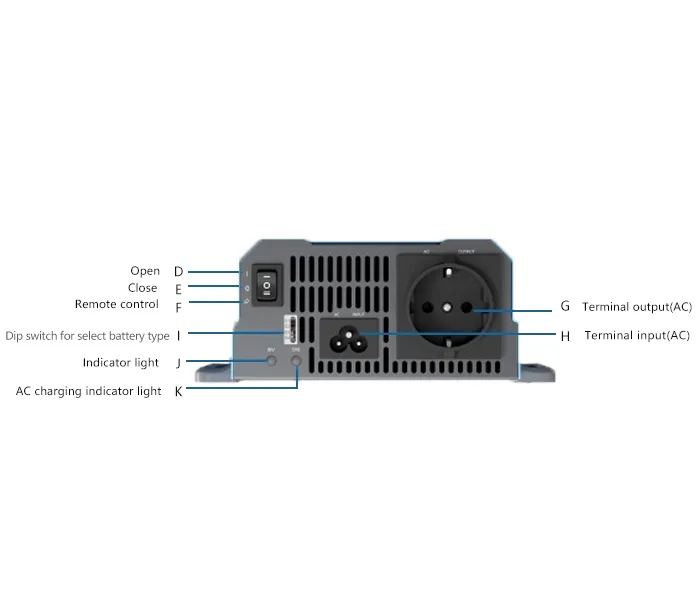

Discription of Ports and components

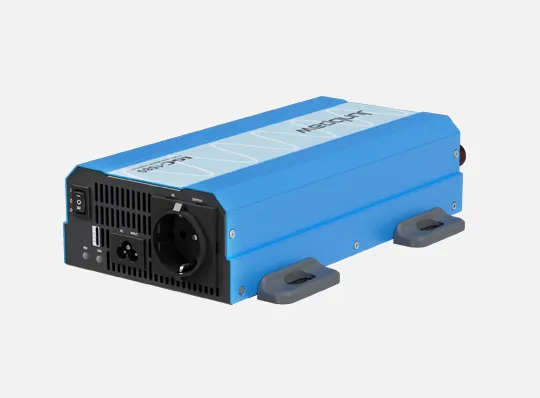

1000W inverter charger

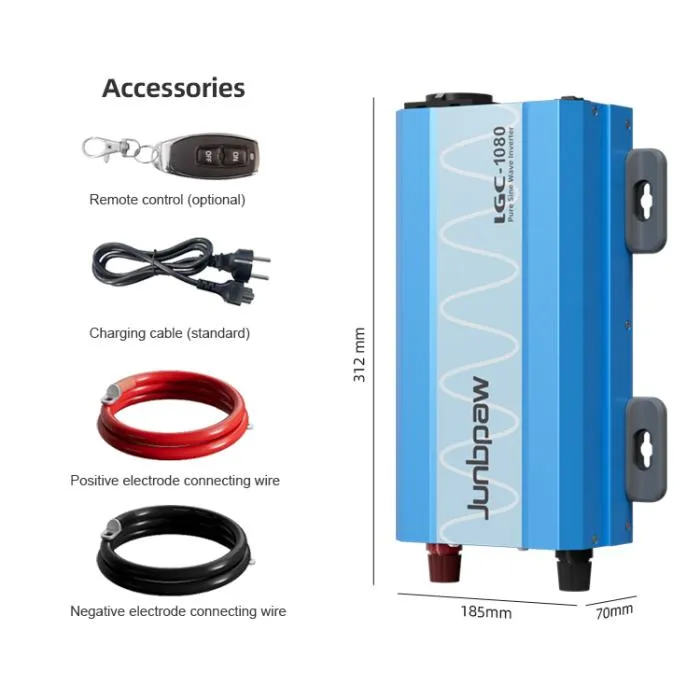

Packing List

1000W inverter charger

battery charger ups car power inverter 1000w

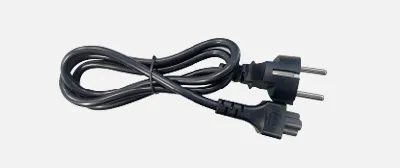

Charging cable

Remote control

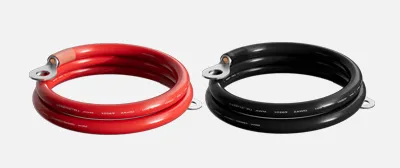

Cables

User Manual

Junbpaw Pure Sine Wave Inverter Manufacturer

Experience:
We are factory,with more than 10 years of inverter manufacturing experience.
Quality:
High-efficiency conversion: Our inverter conversion efficiency can reach 90% above with the defect rate is less than 3%.
High-quality materials and heat dissipation: High-quality capacitors, inductors, and power tubes enable the inverter to run at full load for a long time. The superior heat dissipation system can prevent the inverter from overheating, avoiding performance degradation and component damage caused by high temperature.
Circuit design: The circuit board layout is reasonable and compact, pure sine wave with THD<3%.
Comprehensive protection: With overvoltage, overcurrent, overheating, undervoltage, short circuit, and reverse polarity protection.

Most compact and Portable Backup Power
