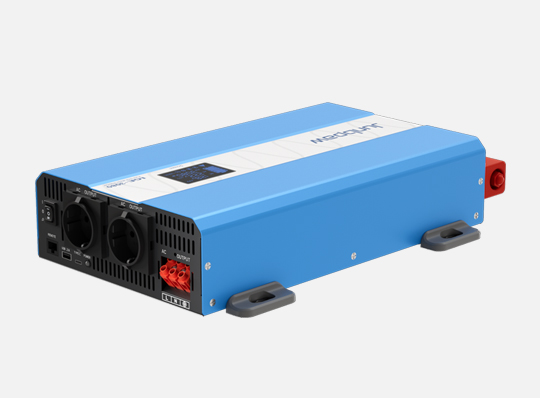

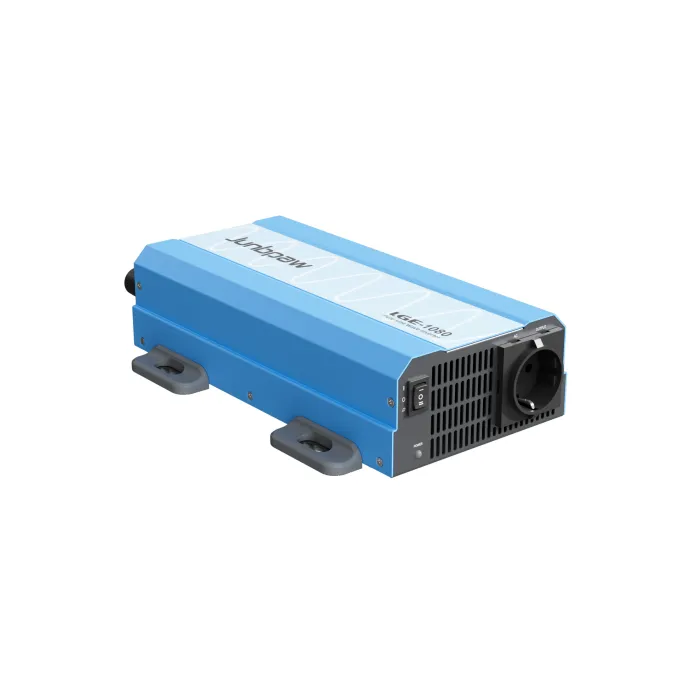

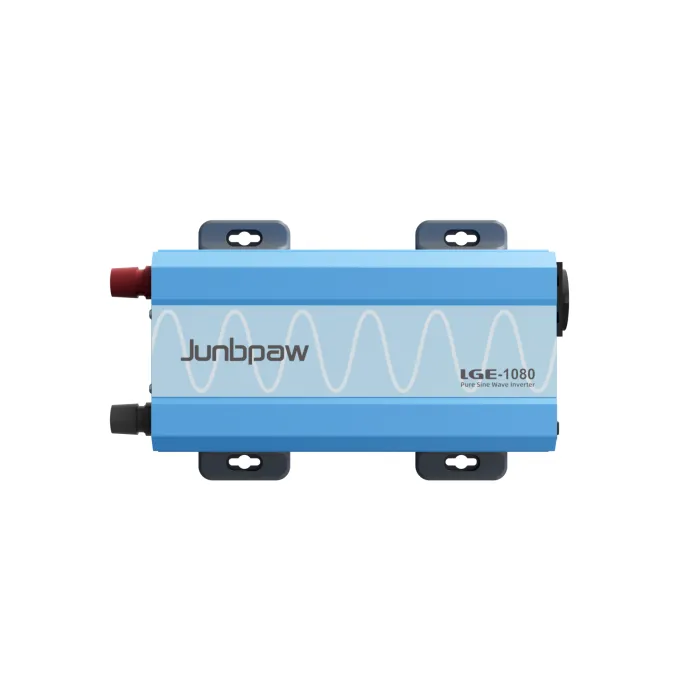

LGE-1080W Pure Sine Wave Inverter

A highly reliable DC-to-AC inverter system;

With advanced power electronic and microprocessor technology;

Pure sine wave technology delivers quiet and high-quality AC power;

Input & output fully isolation;

Efficiency exceeding 90% with a peak surge of 3000W;

Temperature & load controlled cooling fan;

Intelligent software for power management;

User-friendly remote control and multiple outlets;

Input protection：Reverse Polarity (Fuse) / Under Voltage / Over Voltage

Output protection：Short Circuit / Overload / Over Temperature

Strong load adaptability: inductive/ capacitive/ resistive/ mixed load;

Compatible with various batteries;

Contact Now

+ Inquire

Downloads

Description

Specification

FAQ

Jnbpaw LGE Series 1000W Pure Sine Wave Inverter

The Junbpaw Pure Sine Inverter can produce a full power output of 1,080 watts, making it ideal for running sensitive electronics. This pure sine wave inverter not only powers your devices but also helps to extend their lifespan. It is suitable for use in vehicles, boats, camping, and emergencies where backup power is needed. With its quiet operation and ability to handle high inductive loads, your electronics will run more smoothly, cooler, and quieter than ever before.

Output Voltage: 220/230/240V

Rated power 1080w

Most portable and compact 1000W pure sine wave inverter

1000W pure sine wave inverter for 12V/24V/48V

Wall Mounting
Save Space

Long Lasting
Performance

Friendly to Electrlcal
Appliances

Wireless screen

Compatible with
Various Batteries

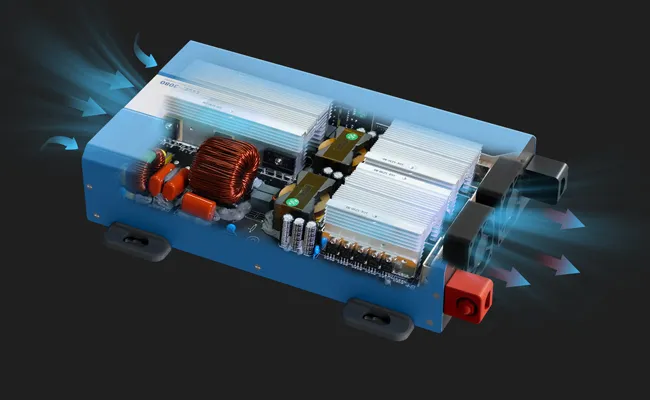

Reliable Inverter System

With advanced power electronic and microprocessor technology. Pure Sine Wave Output ensures clean, reliable power.

Powerful DC to AC

This power inverter provides 1080W continuous DC to AC power with a 3000W peak surge during load start-up.

Protect Your Electronics

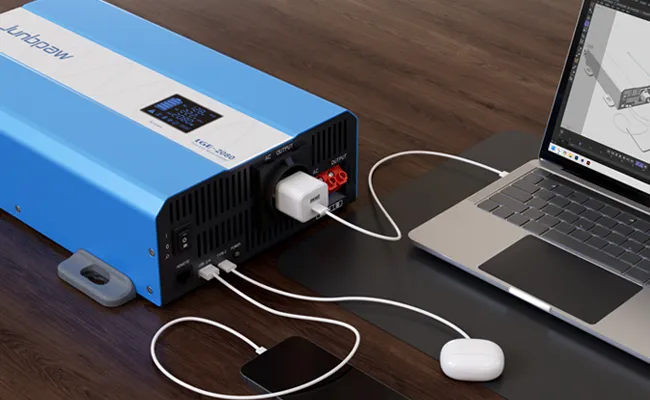

Our pure sine wave inverter generates a pristine pure sine wave output, This ensures an unwavering supply of high-quality electricity, perfect for safeguarding your sensitive electronics.

Extremely Low No-Load Loss

The 1000W inverter features advanced pure sine wave technology, achieving an extremely low no-load loss of less than 10W, which contributes to energy savings.

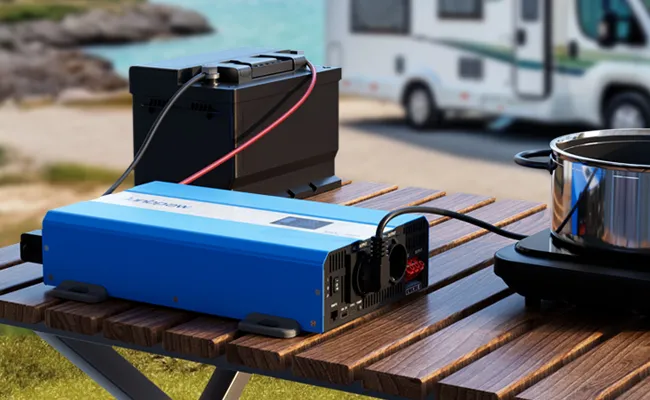

Wide Applications

Ideal for RVs, trucks, and emergencies, providing reliable power to charge devices, run appliances, and support off-grid living or backup needs.

Continuous Power supply

With junbpaw Overland Electrical System and Solar panels, Enough power for long time off grid life

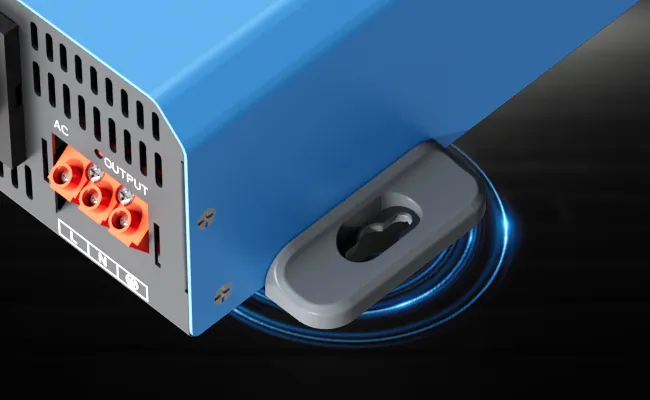

Silicone Foot Pad

The silicone foot pad reduces friction, absorbs vibrations, and ensures quiet operation, protecting surfaces and creating a more stable, noise-free environment.

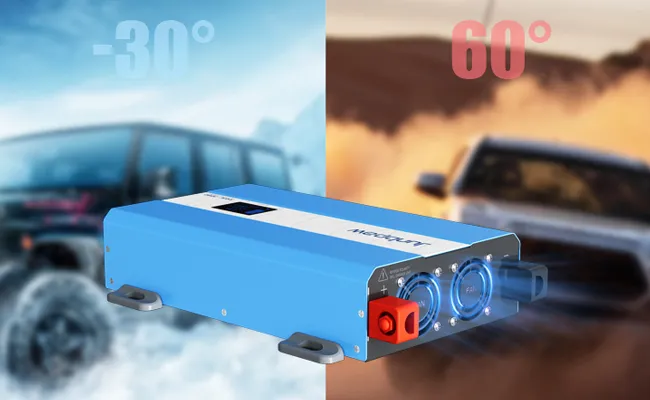

Adaptable for Any Environment

From the scorching heat to the chilly cold, the Junpaw inverter thrives. With a working temperature range of -30°C to 70°C and an operating humidity range of 10% to 95%RH.

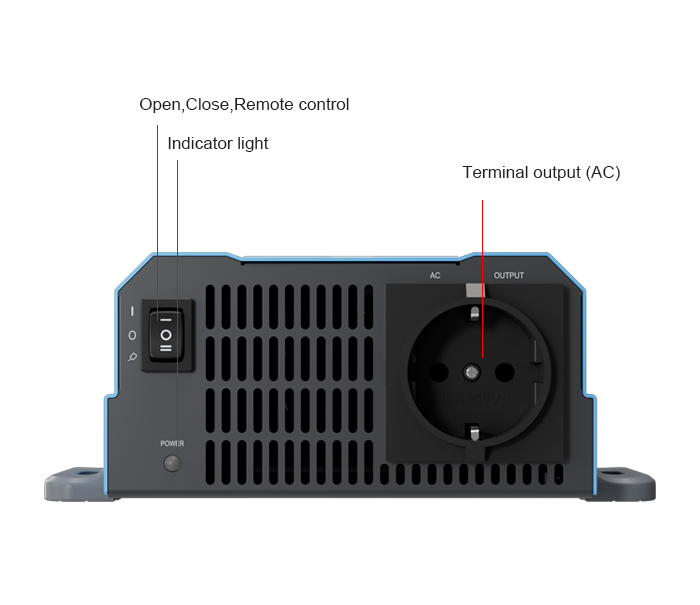

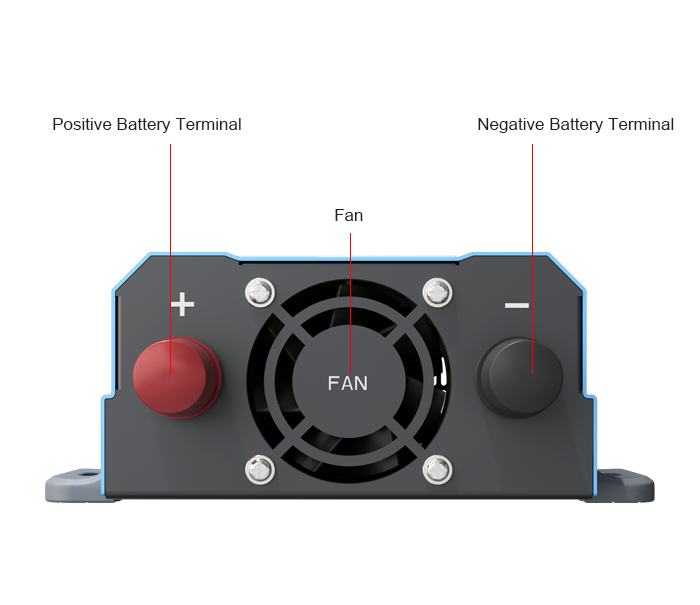

Discription of Ports and components

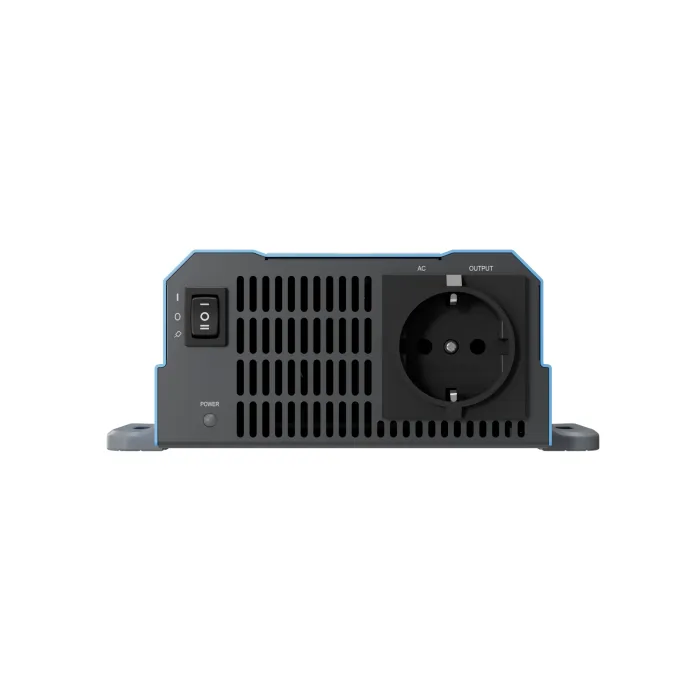

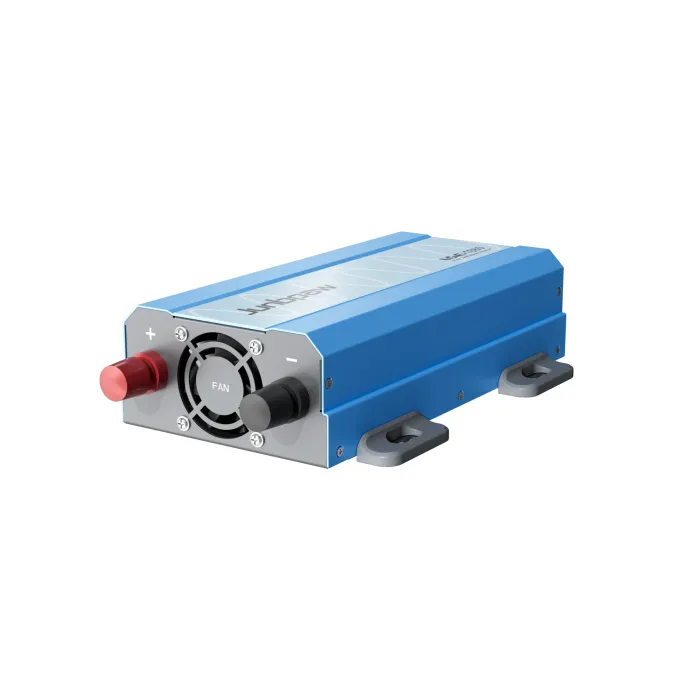

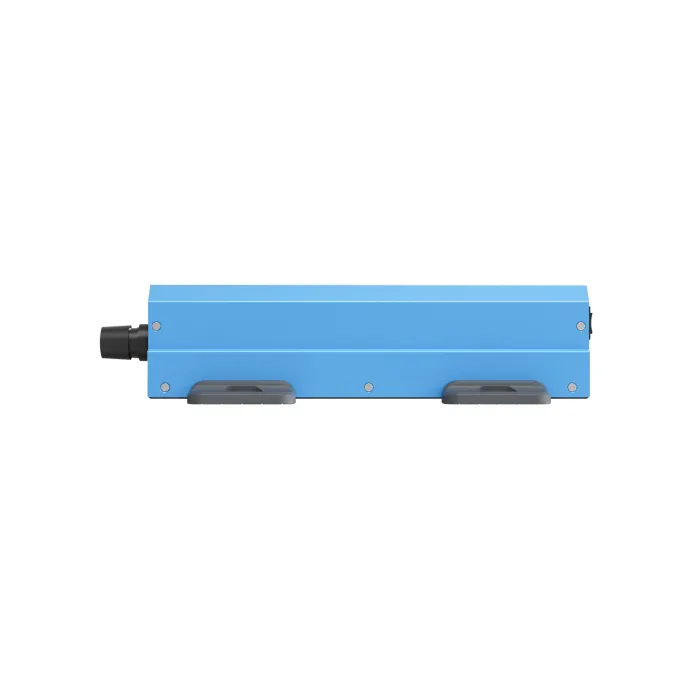

Host Machine

Packing List

LGE-1080W Inverter

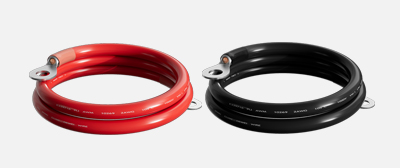

Power Cord

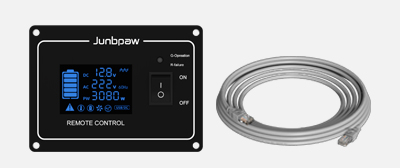

LCD Display

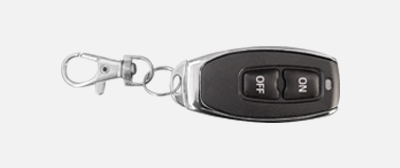

Remote Key

User Manual

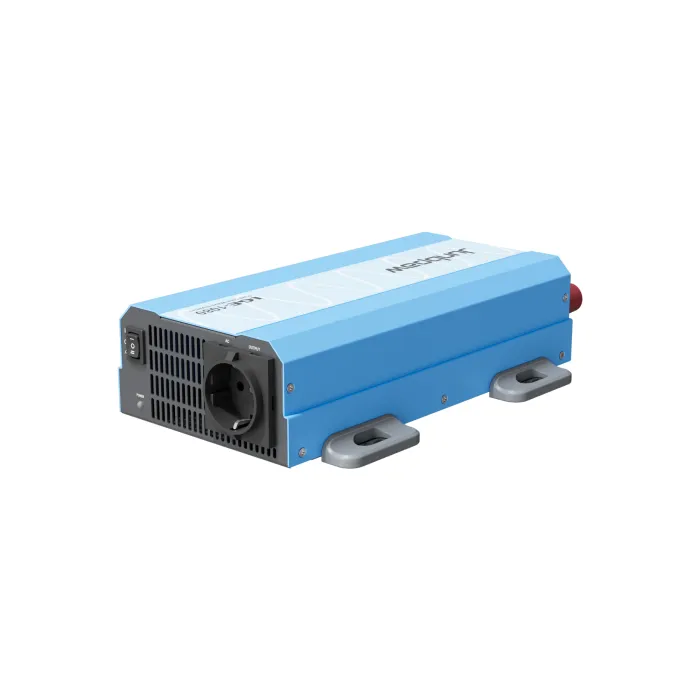

1000W Pure Sine Wave Inverter Power Inverter

Junbpaw 1000w pure sine wave inverter is portable and compact.Whether for off-grid system or caravan,it is easy to install.

1000w pure sine wave inverter offer cleaner,smoother and more reliable power to operate any your electrical appliances.

MODEL NO.		LGE-1080
OUTPUT	Rated Power (Typ.)	1080W
	Maximum Output Power(1 Min)	>1080W~1242W(100%~115%)
	Surge Power(Max.300 ms)	>3000W
	AC Voltage	220/230/240VAC
	Frequency	50/60 Hz±0.5%
	Waveform	Pure sine wave(THD<3%)
	AC Regulation(Typ.)	±5%
	USB	output voltage:5V output current:2.1A maximum power:10.5W
	Type-c	output voltage:9V output current:2A maximum power:18W
	LED Indicator	Input Voltage level,output load level and faulty status
INPUT	DC Voltage	12VDC	24 VDC	48 VDC
	Voltage Range	10.5~16.5VDC	21.0~33.0VDC	42.0~66.0VDC
	No Load Current	0.6A	0.4A	0.25A
	Efficiency (max)	91%	93%	94%
	Remote Standby Mode	≤0.8W	≤0.8W	≤0.8W
PROTECTION	Input Under -Voltage Protection	10.0±0.3VDC	20.0±0.5VDC	41.0±1.0VDC
	Input Under -Voltage Recovery	12.5±0.3VDC	25.0±0.5VDC	50.0±1.0VDC
	Input Over -Voltage Protection	16.5±1.0VDC	33.0±1.0VDC	63.0±1.0VDC
	Input Over -Voltage Recovery	15.0±0.5VDC	30.0±0.5 VDC	58.0±1.0VDC
	Output Overload	1080W≥115%
		1minute automatic shutdown output,automatic lock,restart to recover
	Output Short Circuit	Output short circuit protection 3s shutdown lock,restart to recover
	Over Temperature	85C±5 ℃
	DC Input Reverse Polarity	Byinternal fuse open
SAFETY&EMC	Withstand Voltage	Bat I/P-AC O/P:3.0 KVAC AC O/P -FG:1.5 KVAC
	Isolation Resistance	Bat VP-AC O/P,Bat IVP -FG,AC O/P-FG:100M ohms/500VDCI 25 C70%RH
	EMC Emission	Compliance to FCC cassA,E-Mark EACTPTC 020,EN55032 classA,72/245/CEE,95/54/CE
	EMC Immunity	Compliance to EAC TPTC020,EN61000-4-2,3,4,5,6,8,11
ENVIRONMENT	Working Temp	-30C～60℃
	Working Humidity	20~90%RH
	Storage Temp,Humidity	-30~70℃/-22~+158F,10~95%RH non-condensing
OTHERS	Dimension	31218573mm
	Packing	=2.3 KG

Frequently Asked Questions

Fregquently asked questions, we have integrated them into a self-service Q&A lfyou have other questions, please leave us a message.

Can I use the inverter with a 24V system?

No. This is 12V inverter, so this model can only work with 12V battery system.

Can I use this 12V inverter to charge my batteries?

No. The Renogy 12VDC to 230/240VAC inverter can only convert DC power to AC power. Please check the Renogy Pure Sine Wave Inverter Charger, and we have 12V 2000W and 3000W for your options.

How do I hook up the 12V to 240V inverter? What size cable should I use, and is it included?

When connecting the power inverter 12V to 240V to the battery always use the thickest wire available, in the shortest length practical. 20mm²*6m cables with battery terminals is included in the pacakge.

Can I use this inverter to connect different batteries?

Yes.The inverter can be connected with different battery,like AGM,Lead-acid,LifePo4.

Can this 12V to 240V inverter work with lithium batteries?

Yes, as long as the lithium battery is rated for 12V applications.
