LGE-4080W Pure Sine Wave Inverter

A highly reliable DC-to-AC inverter system;

With advanced power electronic and microprocessor technology;

Pure sine wave technology delivers quiet and high-quality AC power;

Input & output fully isolation;

Efficiency exceeding 90% with a peak surge of 9000W;

Temperature & load controlled cooling fan;

Intelligent software for power management;

User-friendly remote control and multiple outlets;

Input protection：Reverse Polarity (Fuse) / Under Voltage / Over Voltage

Output protection：Short Circuit / Overload / Over Temperature;

Strong load adaptability: inductive/ capacitive/ resistive/ mixed load;

Compatible with various batteries;

Contact Now

+ Inquire

Downloads

Description

Specification

FAQ

Junbpaw 4000W Pure Sine Wave Inverter

LGE Series pure sine wave inverter.
This inverter is suitable for any vehicle model and any type of battery. Whether it is a caravan for travel or a commercial vehicle for mobile working.The most portable size brings the most robust energy.The combination of high efficiency and constant temperature will bring you the best outdoor experience. Comfortable, safe, green power will bring the best power to your vehicle.

Output Voltage: 220/230/240V

Rated power 4080w

MODELNO.		LGE-4080		LGE-5080
OUTPUT	Rated Power(Typ.)	4080W		5080W
	Maximum Output Power (1 Min)	>4080W~4692W(100%~115%)		>5080W~5842W(100%~115%)
	Surge Power(Max.300 ms)	>8000W		>10000W
	AC Voltage	220/230/240VAC
	Frequency	50/60 Hz±0.5%
	Waveform	Pure sine wave(THD<3%)
	AC Regulation(Typ.)	±5%
	USB	output voltage:5V output current:2.1A maximum power:10.5W
	Type-c	output voltage:9V output current:2A maximum power:18W
	LED Indicator	Input voltage level, output load level and faulty status
INPUT	DC Voltage	24VDC	48VDC	48 VDC
	Voltage Range	21.0~33.0VDC	42.0~66.0VDC	42.0~66.0VDC
	No Load Current	0.4A	0.3A	0.3A
	Efficiency (max)	92%	93%	92%
	Remote Standby Mode	≤0.08W	≤0.08W	≤0.08W
PROTECTION	Input Under -Voltage Protection	20.0±0.5VDC	41.0±1.0VDC	41.0±1.0VDC
	Input Under-Voltage Recovery	25.0±0.5VDC	50.0±1.0VDC	50.0±1.0VDC
	Input Over -Voltage Protection	33.0±1.0VDC	63.0±1.0VDC	63.0±1.0VDC
	Input Over -Voltage Recovery	30.0±0.5VDC	58.0±1.0VDC	58.0±1.0VDC
	Output Overload	4080W≥115%,5080W≥115%
		1minute automatic shutdown output ,automatic lock,restart to recover
	Output Short Circuit	Output short circuit protection 3s shutdown lock,restart to recover
	Over Temperature	85C±5℃
	DC Input Reverse Polarity	By internal fuse open
SAFETY&EMC	Withstand Voltage	Bat I/P-AC O/P:3.0 KVAC AC O/P -FG:1.5 KVAC
	Isolation Resistance	Bat I/P-AC OP,Bat I/P-FG,AC OP-FG:100M ohms/500VDC 25 C/70%RH
	EMC Emission	Compliance to FCC cassA,E-Mark EACTPTC 020,EN55032 cassA,72/245/CEE,95/54/CE
	EMC Immunity	Compliance to EAC TPTC 020,EN61000-4-2,3,4,5,6,8,11
ENVIRONMENT	Working Temp	-30℃~60℃
	Working Humidity	20~90%RH
	Storage Temp,Humidity	-30~70℃/-22~+158F,10~95%RH non-condensing
OTHERS	Dimension	404.525985mm		404.525985mm
	Packing	≈5.8KG		≈5.8KG

4000W Power Inverter Pure Sine Wave Inverter

3000W Pure Sine Wave Inverter for 12V/24V/48V

Wall Mounting
Save Space

Long Lasting
Performance

Friendly to Electrical
Appliances

Wireless screen

Compatible with
Various Batteries

Reliable Inverter System

With advanced power electronic and microprocessor technology. Pure Sine Wave Output ensures clean, reliable power.

Powerful DC to AC

This power inverter provides 1080W continuous DC to AC power with a 3000W peak surge during load start-up.

Protect Your Electronics

Our pure sine wave inverter generates a pristine pure sine wave output, This ensures an unwavering supply of high-quality electricity, perfect for safeguarding your sensitive electronics.

Extremely Low No-Load Loss

The 1000W inverter features advanced pure sine wave technology, achieving an extremely low no-load loss of less than 10W, which contributes to energy savings.

Equipped with Dual LCD Displays

It's easy to monitor the inverter's operating status, allowing for easy troubleshooting and adjustment of both the inverter and battery settings.

Continuous Power supply

With junbpaw Overland Electrical System, enough power for long time off
grid life

Silicone Foot Pad

The silicone foot pad reduces friction, absorbs vibrations, and ensures quiet operation, protecting surfaces and creating a more stable, noise-free environment.

Adaptable for Any Environment

From the scorching heat to the chilly cold, the Junpaw inverter thrives. With a working temperature range of -30°C to 70°C and an operating humidity range of 10% to 95%RH.

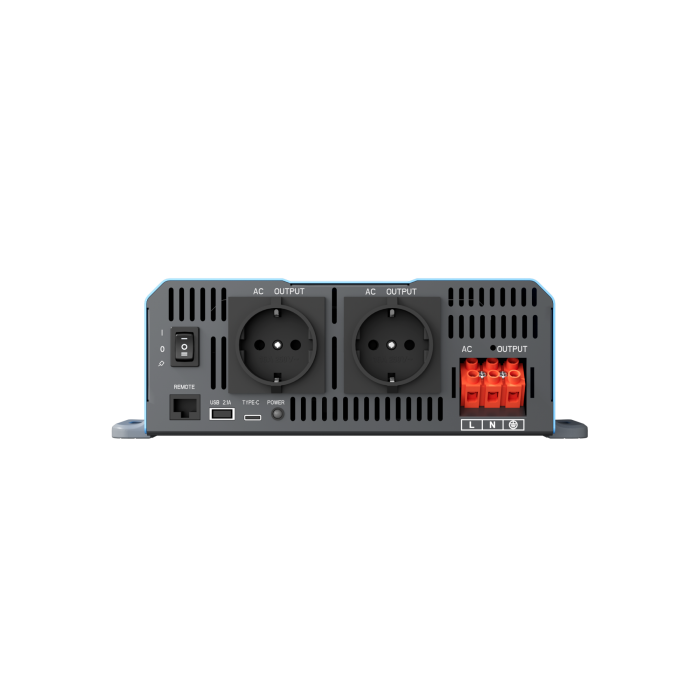

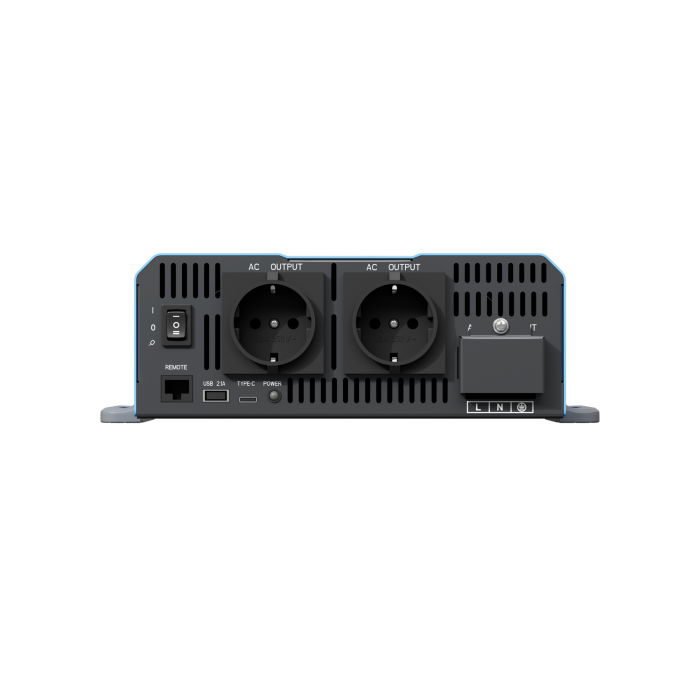

Discription of Ports and components

Host Machine

Packing List

LGE-4080 Inverter

Power Cord

LCD Display

Remote Key

User Manual

Junbpaw Pure Sine Wave Inverter Manufacturer

Experience:
We are factory,with more than 10 years of inverter manufacturing experience.
Quality:
High-efficiency conversion: Our inverter conversion efficiency can reach 90% above with the defect rate is less than 3%.
High-quality materials and heat dissipation: High-quality capacitors, inductors, and power tubes enable the inverter to run at full load for a long time. The superior heat dissipation system can prevent the inverter from overheating, avoiding performance degradation and component damage caused by high temperature.
Circuit design: The circuit board layout is reasonable and compact, pure sine wave with THD<3%.
Comprehensive protection: With overvoltage, overcurrent, overheating, undervoltage, short circuit, and reverse polarity protection.

4000W pure sine wave inverter

with Peak Power of 12000W

MODELNO.		LGE-4080		LGE-5080
OUTPUT	Rated Power(Typ.)	4080W		5080W
	Maximum Output Power (1 Min)	>4080W~4692W(100%~115%)		>5080W~5842W(100%~115%)
	Surge Power(Max.300 ms)	>8000W		>10000W
	AC Voltage	220/230/240VAC
	Frequency	50/60 Hz±0.5%
	Waveform	Pure sine wave(THD<3%)
	AC Regulation(Typ.)	±5%
	USB	output voltage:5V output current:2.1A maximum power:10.5W
	Type-c	output voltage:9V output current:2A maximum power:18W
	LED Indicator	Input voltage level, output load level and faulty status
INPUT	DC Voltage	24VDC	48VDC	48 VDC
	Voltage Range	21.0~33.0VDC	42.0~66.0VDC	42.0~66.0VDC
	No Load Current	0.4A	0.3A	0.3A
	Efficiency (max)	92%	93%	92%
	Remote Standby Mode	≤0.08W	≤0.08W	≤0.08W
PROTECTION	Input Under -Voltage Protection	20.0±0.5VDC	41.0±1.0VDC	41.0±1.0VDC
	Input Under-Voltage Recovery	25.0±0.5VDC	50.0±1.0VDC	50.0±1.0VDC
	Input Over -Voltage Protection	33.0±1.0VDC	63.0±1.0VDC	63.0±1.0VDC
	Input Over -Voltage Recovery	30.0±0.5VDC	58.0±1.0VDC	58.0±1.0VDC
	Output Overload	4080W≥115%,5080W≥115%
		1minute automatic shutdown output ,automatic lock,restart to recover
	Output Short Circuit	Output short circuit protection 3s shutdown lock,restart to recover
	Over Temperature	85C±5℃
	DC Input Reverse Polarity	By internal fuse open
SAFETY&EMC	Withstand Voltage	Bat I/P-AC O/P:3.0 KVAC AC O/P -FG:1.5 KVAC
	Isolation Resistance	Bat I/P-AC OP,Bat I/P-FG,AC OP-FG:100M ohms/500VDC 25 C/70%RH
	EMC Emission	Compliance to FCC cassA,E-Mark EACTPTC 020,EN55032 cassA,72/245/CEE,95/54/CE
	EMC Immunity	Compliance to EAC TPTC 020,EN61000-4-2,3,4,5,6,8,11
ENVIRONMENT	Working Temp	-30℃~60℃
	Working Humidity	20~90%RH
	Storage Temp,Humidity	-30~70℃/-22~+158F,10~95%RH non-condensing
OTHERS	Dimension	404.525985mm		404.525985mm
	Packing	≈5.8KG		≈5.8KG
