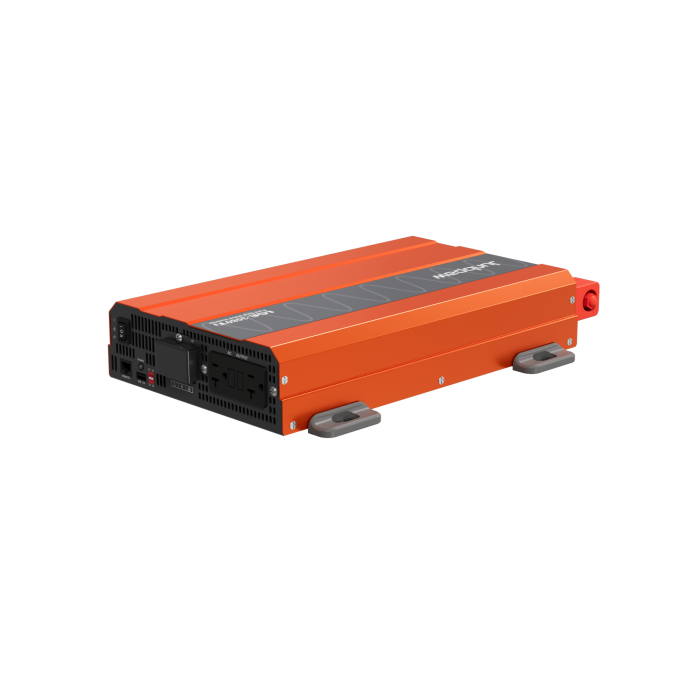

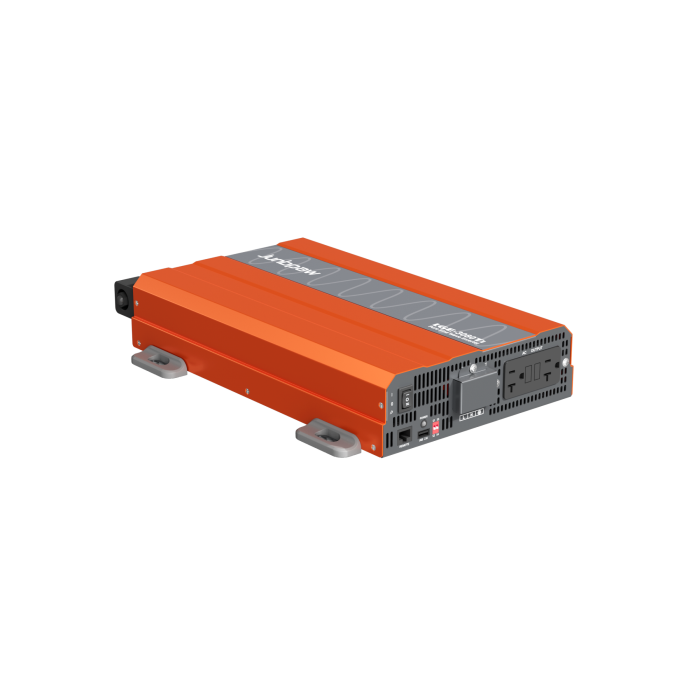

LGE-Ti 3080W Car Power Inverter

High Power: Offers 3080W continuous

High Surge: up to 9000W peak;

Low no-load: Less than 10W

High Efficient: Over 90% efficiency;

Versatile Outlets: Includes 2x 110V AC and 1x USB port;

Advanced Safety: Protects against electrical issues;

Smart Cooling: Silent fan for temperature control;

Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage;

Output protection: Short Circuit / Overload / Over Temperature;

Strong load adaptability: inductive/ capacitive/ resistive/ mixed load;

Wide Applications: Ideal for RVs, trucks, and emergencies;

User-Friendly: Optional remote control panel.

Durable Build: Long-lasting performance.

Contact Now

+ Inquire

Downloads

Description

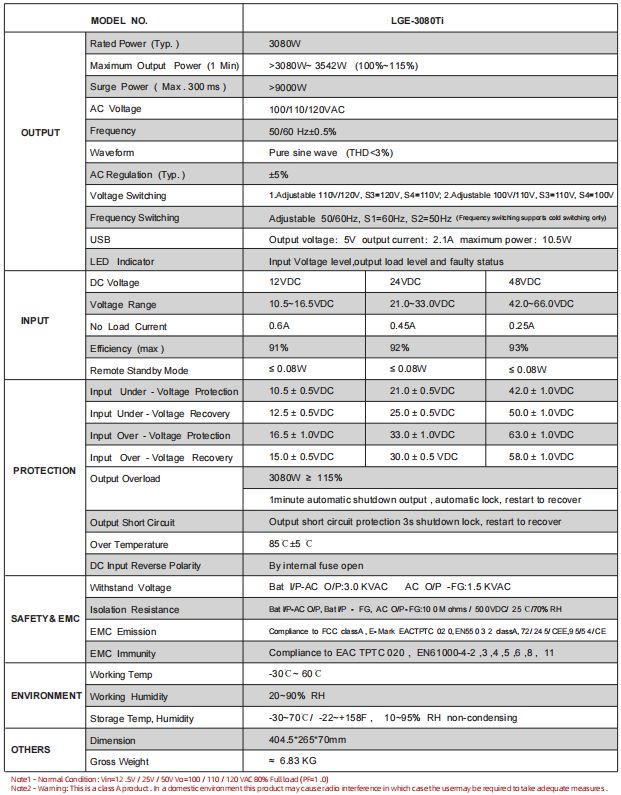

Specification

FAQ

Junbpaw LGE-Ti Series 3080W Pure Sine Wave Inverter

The Junbpaw LGE-Ti Series pure sine wave inverter is designed for 110V/120V output. It features a Total Harmonic Distortion (THD) of less than 3%, ensuring a clean and stable sine wave. With an efficiency of up to 90%, this inverter is compatible with any vehicle model. The peak power capability allows it to effortlessly handle inductive, resistive, and capacitive loads. Users can freely switch the voltage and frequency as needed. Additionally, the silent operation ensures undisturbed rest.

Output Voltage: 100/110/120V

Rated power 3080W

Junbpaw - the simplest overland electrical system

Compact and High efficiency 12V to 120V pure sine wave inverter 3000W

Wall Mounting
Save Space

Long Lasting
Performance

Friendly to Electrlcal
Appliances

Wireless screen

Compatible with
Various Batteries

Compact Powerhouse

Junpaw 3000W Pure Sine Wave Power Inverter DC 12V/24V/48V to 110V/120V AC Converter With Digital Display

Maximize Efficiency

Harness the power of efficiency with an efficiency of 91% (for 12V DC input) and 93% (for 24V/48V DC input), our inverter optimizes battery usage, allowing you to make the most of every charge

High Quality Raw Materials

Unlike other liquid capacitors, Junpaw uses advanced solid capacitors. Long lasting performance.

Versatile Applications

From recreational vehicles (RVs) to travel, camping, emergencies, and home power solutions, the Junpawe inverter proves its versatility.

Protect Your Electronics

Our pure sine wave inverter generates a pristine pure sine wave output, This ensures an unwavering supply of high-quality electricity, perfect for safeguarding your sensitive electronics.

Efficient & Quite Intelligent Cooling Fan

Two cooling fans will be automatically turned on and operated with low noise of <60dB, to avoid the device gets overheating.

Comprehensive Protection

This pure sine inverter is equipped with built-in protections including overload, over-voltage, under-voltage, high temperature, short circuit, leakage, and reverse polarity protection.

Support Frequency&Voltage switching

One inverter has frequency switch&voltage switch.

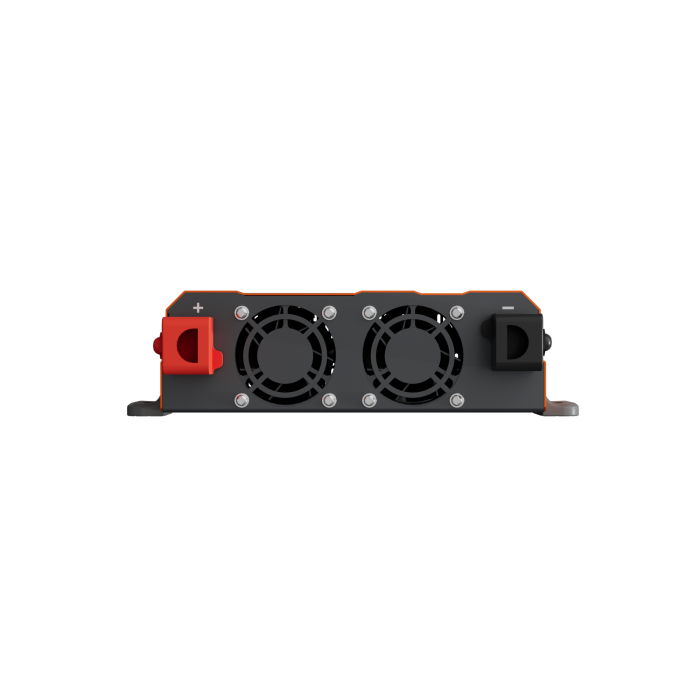

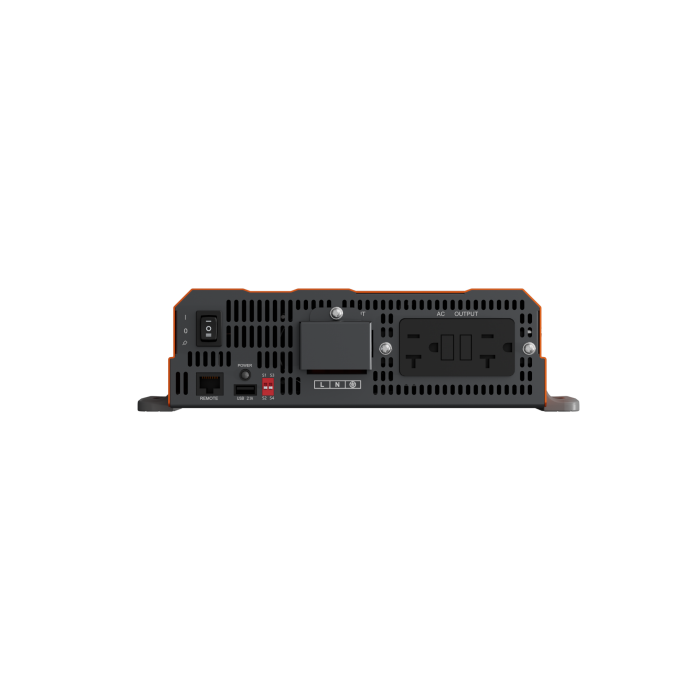

Discription of Ports and components

Host Machine

Packing List

LGE-3080Ti Inverter

Power Cord

LCD Display

Remote Key

User Manual

48V Overland electrical system

The perfect addition to any off-grid system, whether for a caravan or a cabin, the Renogy 1000W Pure Sine Wave Power Inverter acts as a DC to AC converter that allows you to power your household appliances. Unlike modified sine wave inverters, this 1000W inverter is a pure sine wave, capable of producing cleaner, smoother, and more reliable electricity to operate tools, fans, lights, and other electronics without interference. Many off-grid systems require a 12V solar inverter to power everyday electronics and this one includes multiple protections to help things run smoothly and safely.

MODEL		T3
PV INPUT
Max. Input Voltage		100Vdc
MPPT Voltage Range		18~100Vdc
Max. Input Current		10A
Max. Input Power		600W
AC OUTPUT (INVERTER)
Rated Power		2500W
AC Output voltage		220V/230V/240V
STARTER BATTERY / AL TERNATOR
Battery Type		Lead-Acid
Rated Battery Voltage		12Vdc
Max.Altemator Input Voltage	Conventional Altemator	12~16dc
Max.Altemator Input Voltage	Standard Alternator	12~14.2V
Max. Generator Input Current		50A
Altemator Charging Mode		Buck, Boost
LEISURE BATTERY
Battery Type		LIFEPO4
Rated Battery Voltage		48Vdc
Battery Voltage Range		39.2~51.2Vdc
Max. Charging Current		20A
EFFICIENCY
MPPT Tracking Efhciency		99%
Max. Charging Conversion Efhciency		98%
BASIC
Dimension	33326879mm	Warranty	3 years
Weight	8kg	Communication	RS485
Protection	ANTI REVERSE	Temperature	-35℃-60℃
PROTECTION
Over-charging protection, over-current protection, over-temperature protection, generator reverse connection protection, solar panel reverse connection protection, backup battery reverse connection protection, night-time ant-reverse charging protection.

Frequently Asked Questions

Fregquently asked questions, we have integrated them into a self-service Q&A lfyou have other questions, please leave us a message.

Can I use the inverter with a 24V system?

No. This is 12V inverter, so this model can only work with 12V battery system.

Can I use this 12V inverter to charge my batteries?

No. The Renogy 12VDC to 230/240VAC inverter can only convert DC power to AC power. Please check the Renogy Pure Sine Wave Inverter Charger, and we have 12V 2000W and 3000W for your options.

How do I hook up the 12V to 240V inverter? What size cable should I use, and is it included?

When connecting the power inverter 12V to 240V to the battery always use the thickest wire available, in the shortest length practical. 20mm²*6m cables with battery terminals is included in the pacakge.

Can I use this inverter to charge my batteries?

No. This inverter only provides 12V to 230/240V conversion. Please find more with Inverter Charger.

Can this 12V to 240V inverter work with lithium batteries?

Yes, as long as the lithium battery is rated for 12V applications.
