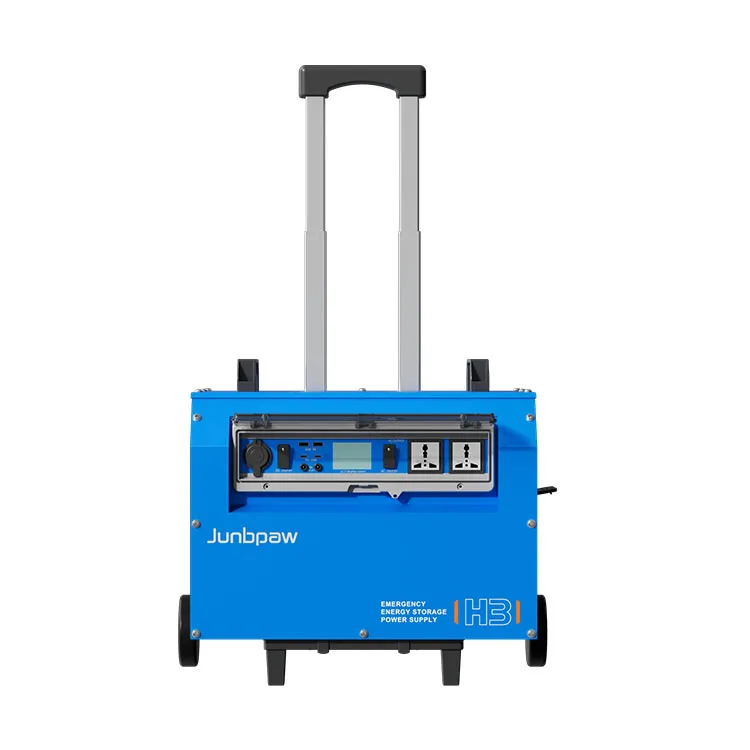

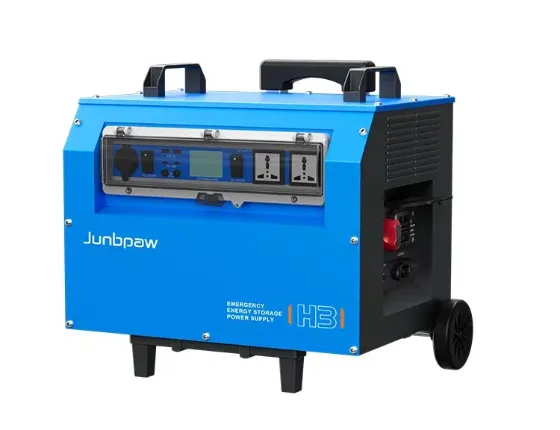

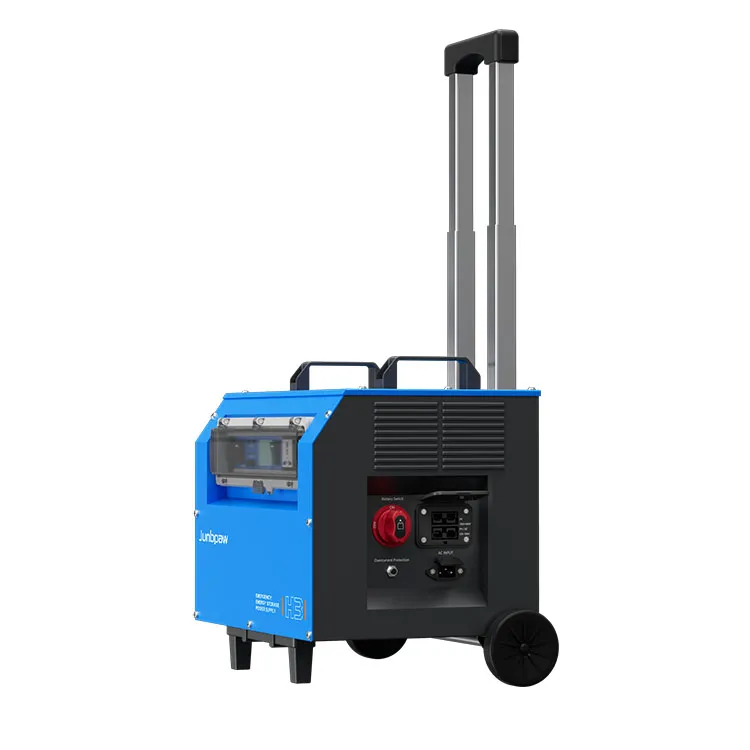

Junbpaw 3000W All In One Portable Solar Generator

Built-in pure sine wave inverter charger,DC-DC charger.

Two MPPT solar charge controller with Maximum solar generation with over 99% efficiency.

Intelligent LCD waterproof digital display& LED display for system parameters and status.

Multiple outlets and interfaces:DC&AC dual inputs and outputs,cigarette lighter,Type-C,USB interface.

Plug & play design for simple installation.

Flexible handles and anti-slip and wear-resistant rubber wheels for easy movement.

Anti-slip, shock-resistant, dustproof and rain-resistant for short periods.

Safety with full electrical protection.

Contact Now

+ Inquire

Downloads

Description

Specification

FAQ

3KW All In One Portable Solar Generator

LGH series is all in one solar inverter.It is designed for various off-grid applications such as mobile power for Car/Yacht, mobile work for off grid environment. It includes Bidirectional inverter, High Voltage MPPT controller, Low Voltage MPPT controller & DC-DC charger, lithium iron phosphate battery module.

Output Voltage: 220/230/240V

Rated power 3000w

MODEL NO.		H3	H4
OUTPUT	Rated Power (Typ. )	3000W	3000W
	Maximum Output Power (1 Min)	>3000W~3240W (100%~115%)	>3000W~3240W (100%~115%)
	Surge Power ( Max . 1 Sec )	>9000W	>9000W
	AC Voltage	220/ 230/ 240VAC
	Frequency	50/60 Hz±0.5%
	WaVeform	Pure sine waVe (THD<3%)
	AC Regulation (Typ. )	±5%
	LED Indicator	Input Voltage leVel, output load leVel and faulty status
	Efficiency (80% . )	91%
PROTEC- TION	Input Under - Voltage Protection	10.0±0 .3VDC
	Input Under - Voltage RecoVery	12.5±0 .3VDC
	Input OVer - Voltage Protection	16.5±1 .0VDC
	Input OVer - Voltage RecoVery	15.0±0 .5VDC
	Output OVerload	3000W ≥ 115%	3000W ≥ 115%
		1 minute automatic shutdown output , automatic lock, restart to recoVer
	Output Short Circuit	Output short circuit protection 3s shutdown lock, restart to recoVer
	Over Temperature	85℃± 5℃
	DC Input Reverse Polarity	By internal fuse open
Battery	Material	Lithium iron phosphate battery
	Battery Voltage	12.8V
	Capacity	280AWh	314AWh
AC input	Input Voltage	180Vac-240Vac
	Max Charging Current	13.8A
	Max. Input Power	2500W
Low Voltage MPPT controller&DC-DC charging	MPPT Voltage Range	12V-100Vdc
	Max Charging Current	67A
	Max. Input Power	800W
High Voltage MPPT controller	MPPT Voltage Range	100V-400Vdc
	Max Charging Current	7.5A
	Max. Input Power	3000W
DC output	USB-A*2	Output voltage: 5V，output current：3A
	Type-C *2	Maximum power 20W
	DC5.5-2.1*2	Output voltage: 12V, output current 5A
	Cigarette lighter	Output voltage: 12V, output current 15A
SAFETY& EMC	Withstand Voltage	Bat l/ P-AC O/ P:3.0KVAC AC O/ P -FG:1.5KVAC
	Isolation Resistance	Bat l/ P-AC O/ P, Bat l/ P - FG, AC O/ P-FG:100M ohms / 500VDC/ 25℃/70%RH
	EMC Emission	Compliance to FCC classA , E-Mark EACTPTC 020 ，EN55032 classA, 72/245/ CEE,95/54/CE
	EMC Immunity	Compliance to EAC TPTC 020 ，EN61000-4-2,3,4,5,6,8, 11
ENVIRON- MENT	Working Temp	-30 ℃~60 ℃
	Working Humidity	20~90% RH
	Storage Temp, Humidity	-30~ +70 ℃/ -22~+158 F , 10~95% RH non-condensing
OTHERS	Dimension	520350435	520350435
	Packing	45Kg	50Kg

3KW All In One Portable Solar Generator

12V all in one vehicle outdoor power supply solution

Wall mounting save space

4000+ extra long circle

Appliad for 99% electrlcal
appliances

Wireless screen

Support solar energy charging

Charge&Discharge and restore power anytime

High Capacity Battery of 3.5KWH/4KWH.

Power any heavy applicances

Pure Sine Wave Output,run 99% electrical appliances.

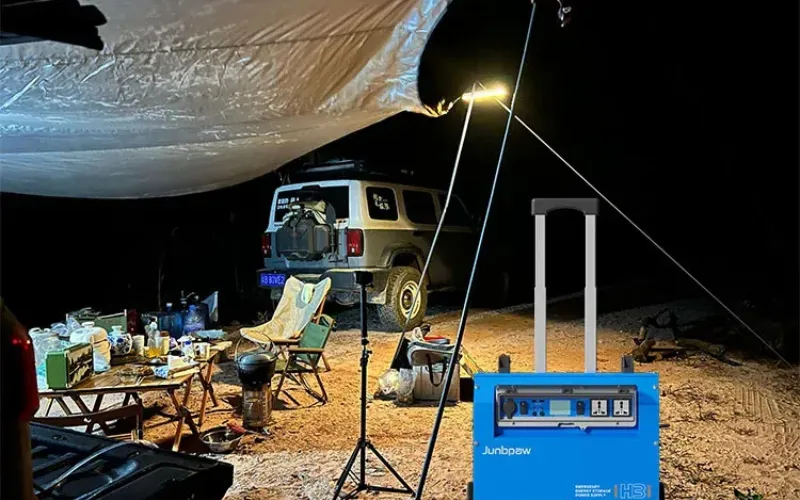

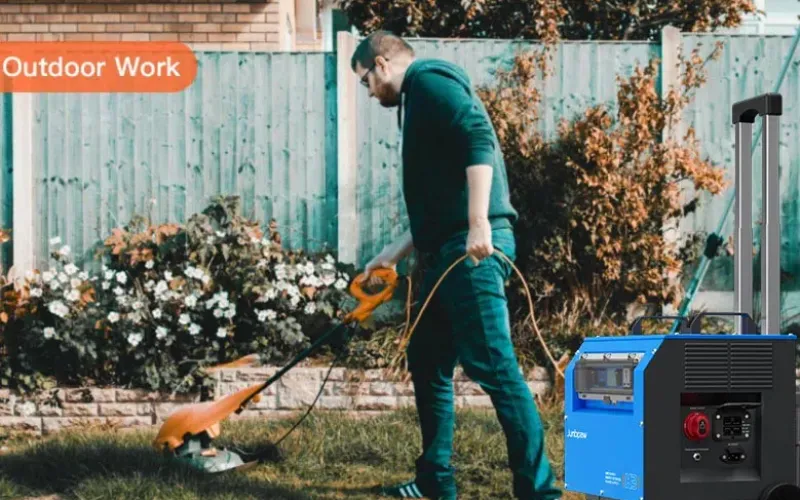

Portable backup power for outdoor

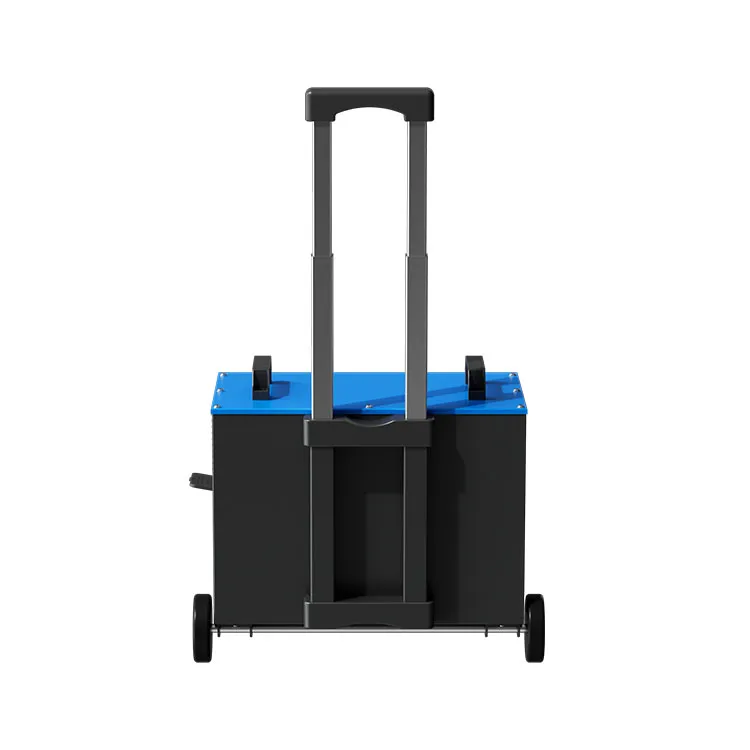

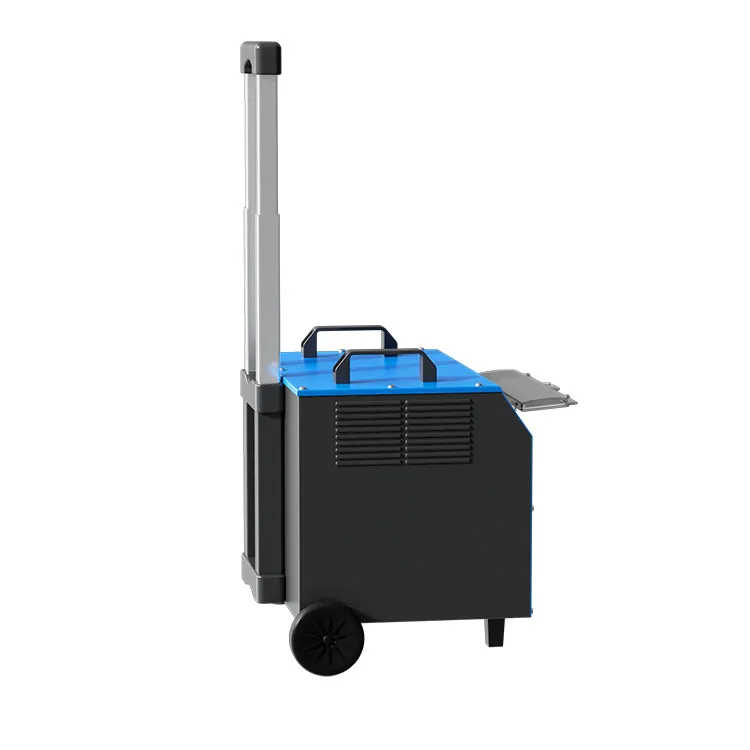

Equipped with a flexible carrying handle and non-slip wear-resistant rubber wheels.

Intelligent BMS system

Intelligent BMS system protect your appliance and the battery.

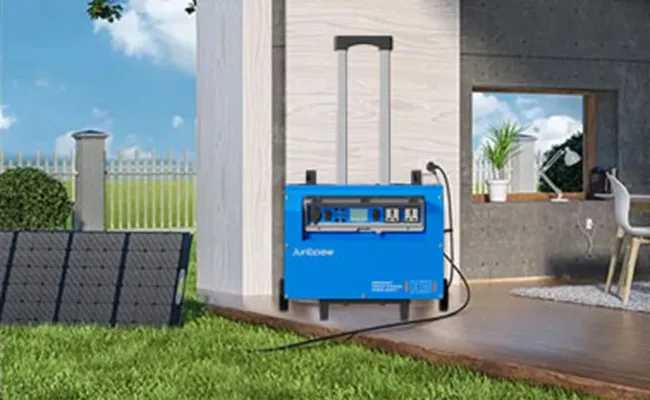

Support Mains charging, MAX power 600W

No worry for power shortage indoor.

Continuous Power supply

With Solar panels, Enough power for long time off gird life.

Multuple DC&AC outlets to power your equipment.

Double TypeC&USB to connect with your equipment.

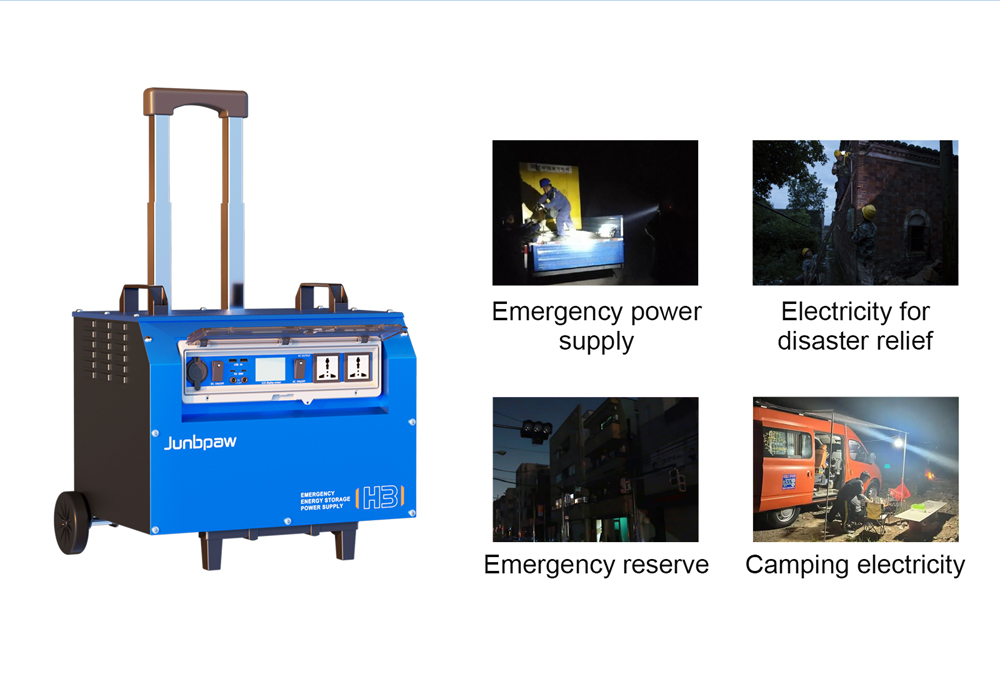

Rescue&maintenance, emergency power generation

Reliable power supply for any emrgency&daily work.

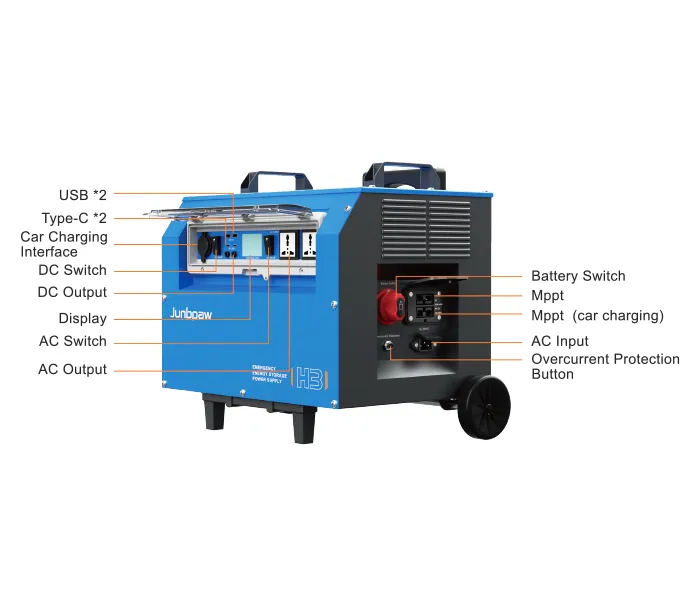

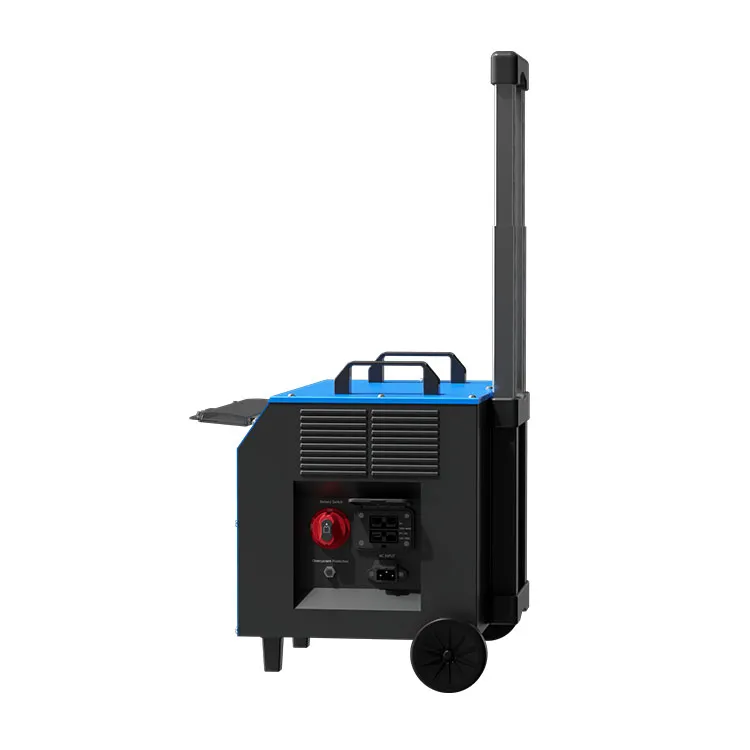

Discription of Ports and components

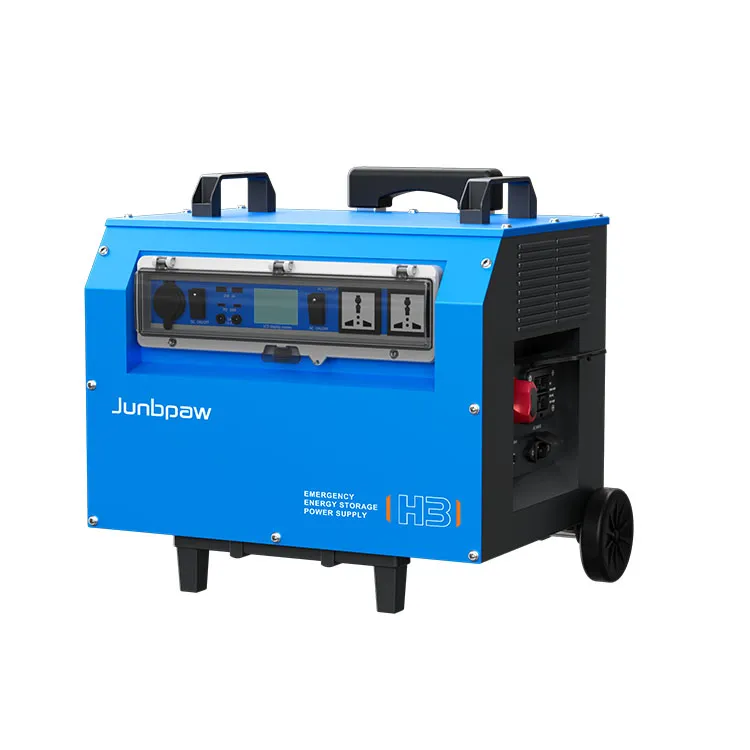

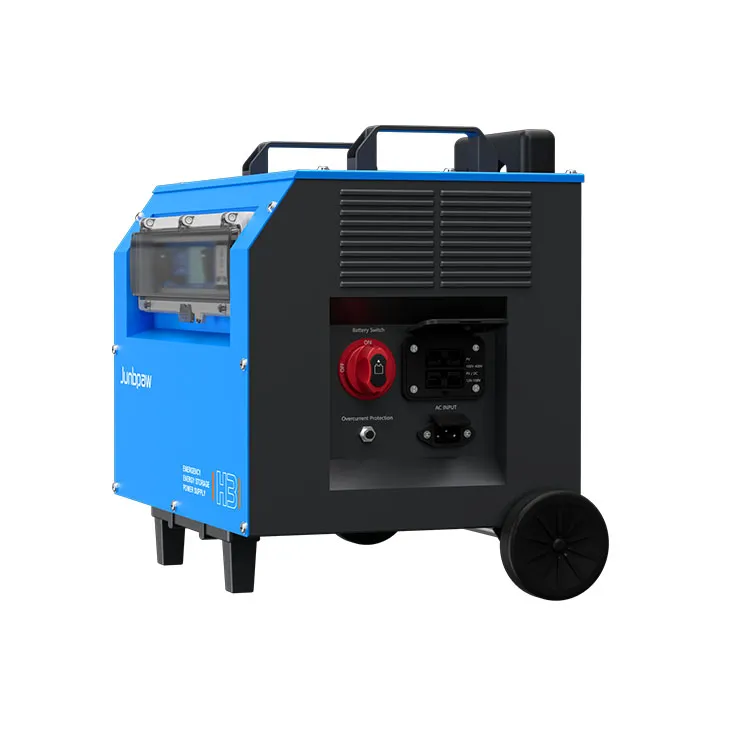

Host Machine

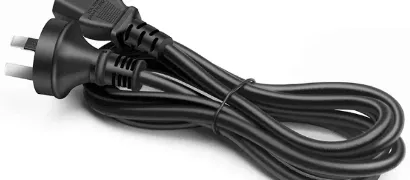

Packing List

T3 host machine and Battery

Junbpaw Pure Sine Wave Inverter Manufacturer

Experience:
We are factory,with more than 10 years of inverter manufacturing experience.
Quality:
High-efficiency conversion: Our inverter conversion efficiency can reach 90% above with the defect rate is less than 3%.
High-quality materials and heat dissipation: High-quality capacitors, inductors, and power tubes enable the inverter to run at full load for a long time. The superior heat dissipation system can prevent the inverter from overheating, avoiding performance degradation and component damage caused by high temperature.
Circuit design: The circuit board layout is reasonable and compact, pure sine wave with THD<3%.
Comprehensive protection: With overvoltage, overcurrent, overheating, undervoltage, short circuit, and reverse polarity protection.

3000W All in one Portable Solar Generator

Discharge, Charge&Store power anytime and anywhere

MODEL NO.		H3	H4
OUTPUT	Rated Power (Typ. )	3000W	3000W
	Maximum Output Power (1 Min)	>3000W~3240W (100%~115%)	>3000W~3240W (100%~115%)
	Surge Power ( Max . 1 Sec )	>9000W	>9000W
	AC Voltage	220/ 230/ 240VAC
	Frequency	50/60 Hz±0.5%
	WaVeform	Pure sine waVe (THD<3%)
	AC Regulation (Typ. )	±5%
	LED Indicator	Input Voltage leVel, output load leVel and faulty status
	Efficiency (80% . )	91%
PROTEC- TION	Input Under - Voltage Protection	10.0±0 .3VDC
	Input Under - Voltage RecoVery	12.5±0 .3VDC
	Input OVer - Voltage Protection	16.5±1 .0VDC
	Input OVer - Voltage RecoVery	15.0±0 .5VDC
	Output OVerload	3000W ≥ 115%	3000W ≥ 115%
		1 minute automatic shutdown output , automatic lock, restart to recoVer
	Output Short Circuit	Output short circuit protection 3s shutdown lock, restart to recoVer
	Over Temperature	85℃± 5℃
	DC Input Reverse Polarity	By internal fuse open
Battery	Material	Lithium iron phosphate battery
	Battery Voltage	12.8V
	Capacity	280AWh	314AWh
AC input	Input Voltage	180Vac-240Vac
	Max Charging Current	13.8A
	Max. Input Power	2500W
Low Voltage MPPT controller&DC-DC charging	MPPT Voltage Range	12V-100Vdc
	Max Charging Current	67A
	Max. Input Power	800W
High Voltage MPPT controller	MPPT Voltage Range	100V-400Vdc
	Max Charging Current	7.5A
	Max. Input Power	3000W
DC output	USB-A*2	Output voltage: 5V，output current：3A
	Type-C *2	Maximum power 20W
	DC5.5-2.1*2	Output voltage: 12V, output current 5A
	Cigarette lighter	Output voltage: 12V, output current 15A
SAFETY& EMC	Withstand Voltage	Bat l/ P-AC O/ P:3.0KVAC AC O/ P -FG:1.5KVAC
	Isolation Resistance	Bat l/ P-AC O/ P, Bat l/ P - FG, AC O/ P-FG:100M ohms / 500VDC/ 25℃/70%RH
	EMC Emission	Compliance to FCC classA , E-Mark EACTPTC 020 ，EN55032 classA, 72/245/ CEE,95/54/CE
	EMC Immunity	Compliance to EAC TPTC 020 ，EN61000-4-2,3,4,5,6,8, 11
ENVIRON- MENT	Working Temp	-30 ℃~60 ℃
	Working Humidity	20~90% RH
	Storage Temp, Humidity	-30~ +70 ℃/ -22~+158 F , 10~95% RH non-condensing
OTHERS	Dimension	520350435	520350435
	Packing	45Kg	50Kg
