IP67 Waterproof DC/AC Power Inverter 1000W

1.Pure Sine Wave Output with Rated power 1000w.

2.Input voltage:24V.

3.Frequency selectable 50/60Hz.

4.Output Voltage:220/230/240V.

5.Housing:Aluminum alloy waterproof case.

Contact Now

+ Inquire

Downloads

Description

Specification

FAQ

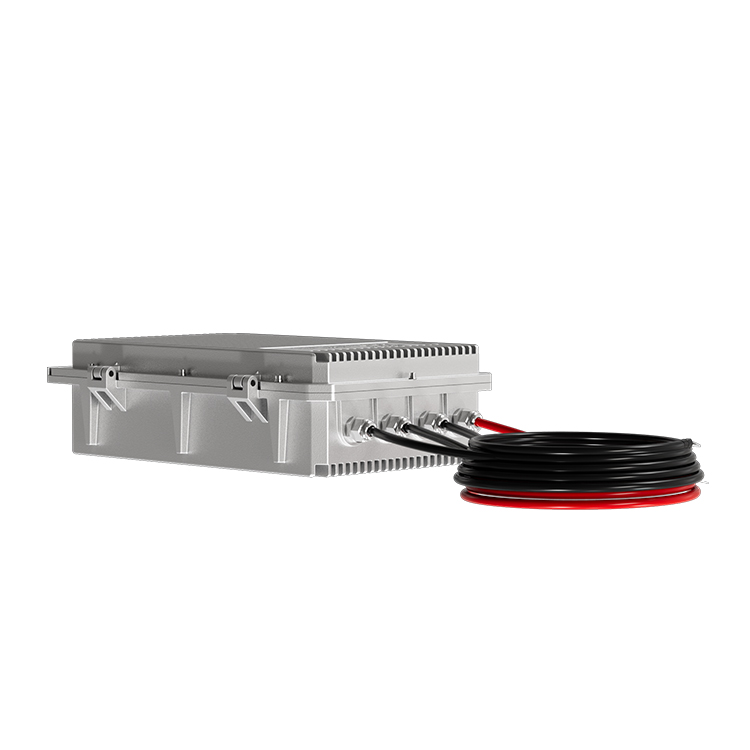

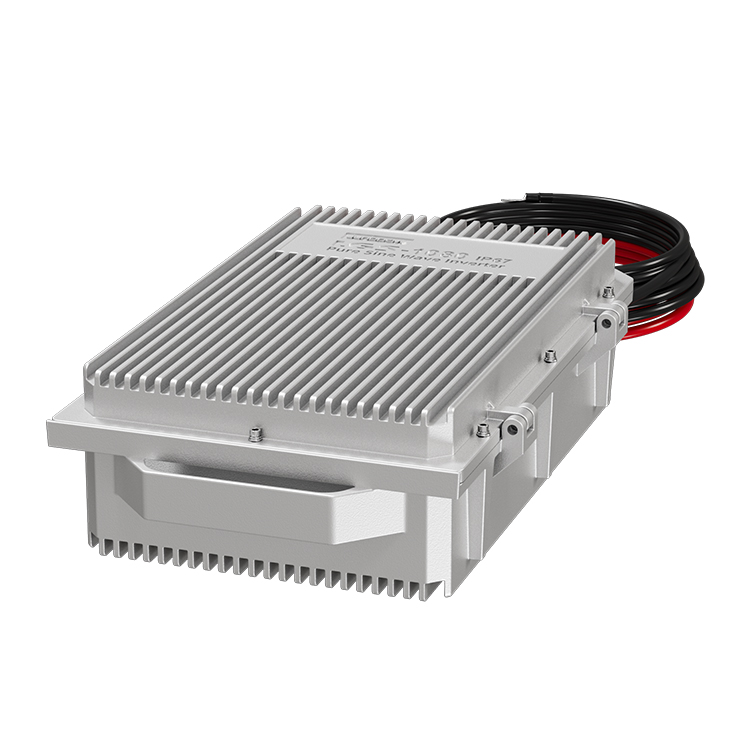

IP67 Waterproof DC/AC Power Inverter

IP67 Waterproof DC/AC Power Inverter adopts aluminum alloy sealed shell and a built-in efficient power conversion module of DC-AC.It can work in relatively humid or water environments. Inverters with waterproof performance can be used not only indoors, but also outdoors, on ships, docks, and other wet or water environments.

Output Voltage: 220/230/240V

Rated power 1000w

High Efficiency IP67 Waterproof Power Inverter

Marine DC-AC Power Supply

Wall mounting save space

4000+ extra long circle

Appliad for 99% electrlcal
appliances

Wireless screen

Support different battery

High protection level

IP67 waterproof rating, can work normally in harsh environments such as humidity and rain

Support connected with multiple appliances

Pure Sine Wave Output,run 99% electrical appliances

Stable and reliable

Advanced circuit design and high-quality components ensure long-term stable operation of the inverter

Overload protection

When the load exceeds the rated power of the inverter, the output will be automatically cut off to protect the equipment from damage.

Anti-corrosion design

The corrosion-resistant shell can effectively resist the erosion of corrosive substances and ensure the long-term stable operation of the equipment.

Excellent heat dissipation performance

The heat dissipation is achieved through the metal casing and the heat dissipation effect will be better when placed in water.

Easy installation

Small size, simple structure, easy installation, can save installation cost and time

Strong compatibility

Applicable to a variety of batteries and loads to meet the needs of different customers

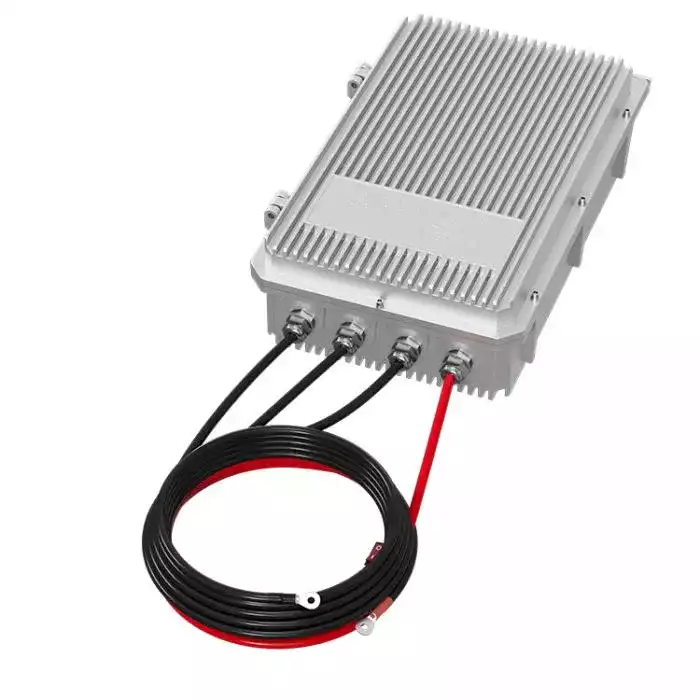

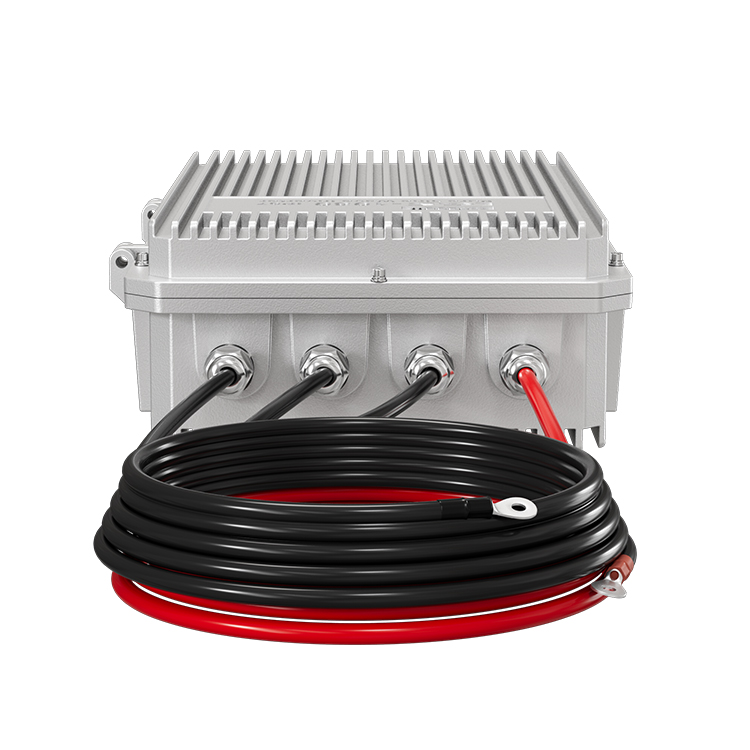

Discription of Ports and components

Host Machine

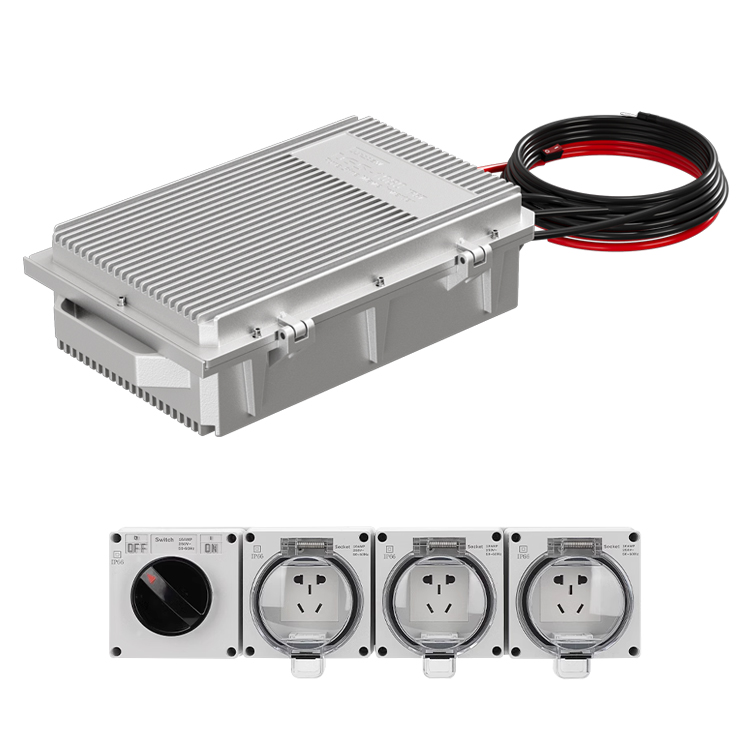

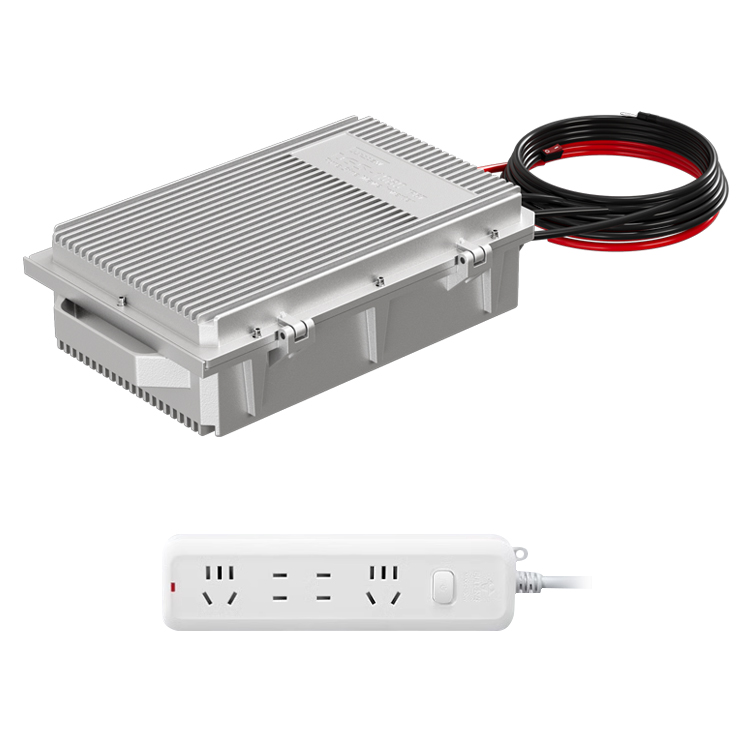

Packing List

LGS host machine

Cables for battery

Cable for switch

Cable for socket

T3 host machine and Battery

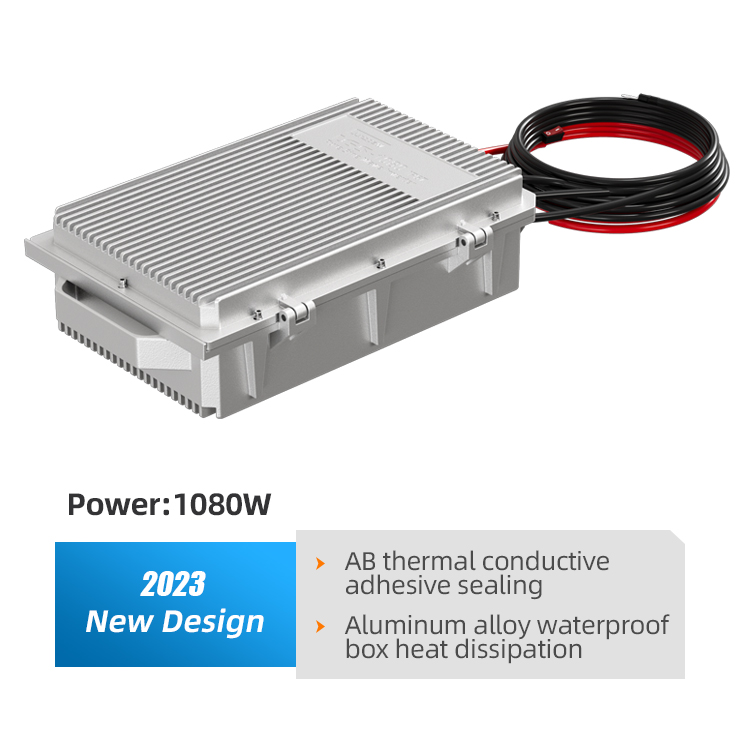

1000W IP67 Waterproof DC/AC Power Inverter

MODEL NO.		LGS-1080
0UTPUT	Rated Power (Typ.)	1080W
	Maximum Output Power (1 Min)	>1080W~1242W(100%~115%)
	Surge Power(Max.300 ms)	>3000W
	AC Voltage	220/230/240VAC
	Frequency	50/60 Hz±0.5%
	Waveform	Pure sine wave(THD<3%)
	AC Regulation(Typ.)	±5%
	USB	output voltage:5V output current:2.1A maximum power:10.5W
	Type-c	output voltage:9V output current:2A maximum power:18W
	LED Indicator	Input Voltage level,output load level and faulty status
INPUT	DC Voltage	12VDC	24 VDC	48 VDC
	Voltage Range	10.5~16.5VDC	21.0~33.0VDC	42.0~66.0VDC
	No Load Current	0.6A	0.4A	0.25A
	Efficiency (max)	91%	93%	93%
	Remote Standby Mode	≤0.08W	≤0.08W	≤0.08W
PROTECTION	Input Under -Voltage Protection	10.0±0.3VDC	20.0±0.5VDC	41.0±1.0VDC
	Input Under -Voltage Recovery	12.5±0.3VDC	25.0±0.5VDC	50.0±1.0VDC
	Input Over -Voltage Protection	16.5±1.0VDC	33.0±1.0VDC	63.0±1.0VDC
	Input Over -Voltage Recovery	15.0±0.5VDC	30.0±0.5VDC	58.0±1.0VDC
	Output Overload	1080W≥115%
		1minute automatic shutdown output,automatic lock,restart to recover
	Output Short Circuit	Output short circuit protection 3s shutdown lock,restart to recover
	Over Temperature	85℃±5 ℃
	DC Input Reverse Polarity	By internal fuse open
SAFETY&EMC	Withstand Voltage	Bat I/P-AC O/P:3.0 KVAC AC O/P -FG:1.5 KVAC
	Isolation Resistance	Bat IVP-AC O/P,Bat IVP -FG,AC O/P-FG:100M ohms/500VDCI 25 C/70%RH
	EMC Emission	Compliance to FCC cassA,E-Mark EACTPTC 020,EN55032 cassA,72/245/CEE,95/54/CE
	EMC Immunity	Compliance to EAC TPTC 020,EN61000-4-2,3,4,5,6,8,11
ENVIRONMENT	Working Temp	-30℃~60℃
	Working Humidity	20~90%RH
	Storage Temp,Humidity	-30~70℃/-22~+158F,10~95%RH non-condensing
OTHERS	Dimension	300200185mm
	Packing	=5.2KG
